(Together with World Annual Consumption, Production and Pricing Figures)

Elements covered include:

Al, Ag, Au, Ba, C (Coal, Oil, Diamonds, Graphite), CO2, Ca, Cd, Co, Cr, Cs, Cu, Fe, Ga, Ge, Hf, In, K, Li, Mg, Mn, Na, Nb/Ta, Ni
O2, Os, P, Pb, Pt, Rb, REE, Rh, S, Sc, Se, Si, Sr, Ta, Te, Th, Th/U, Ti, Tl, U, V, Water, Y, Zn, and Zr. More will be added!

Metal extraction methods

Periodic Table



As of recent years we have accumulated a great deal of new and more accurate data on the composition of common rocks of the Earth's crust. Many elements have been added to the list which previously were below the detection limit of the methods even ten years ago. Perhaps a fresh look at the world wide distribution of the 100-odd element that God, providence, inanimate evolution or what-would-you, gave us to play with, is overdue. Within the last 5 years, data on trace element levels in common minerals is also beginning to appear, mainly because of the development of laser ablation technology.

Global abundances, I should stress, are not in my particular field, there may be up-to-date summaries I am not aware of. But as I have probably looked at more geochemical data than any other person, what is shown below should be factually correct. Discussion of the "whys" of the distributions seen including the degree of partial melt of mantle, differing pressure of partial melt, the nature of the primary or secondary parent rock and fractionation effects are discussed elsewhere.
We give some "average continental crust" type of values elsewhere based on the means of all rocks analysed to date. There are several possible approaches to getting meaningful estimates of element distribution in the different rock types, we could average out from the data base, all rocks called "Rhyolite", all rocks called "Andesite" and all rocks called "Basalt". This would give meaningless results, partly because of poor naming, but also because the term "Rhyolite" is often applied to a very wide range of rocks, including the High-Nb, Zr commendites of Iceland, to the low-Nb high-K "rhyolites" of the Argentinian Andes, and to the incredibly depleted "Rhyolites and rhyodacites" of Proto-arc rocks. Quartz trachytes or commendites, eg from some of the Atlantic alkali-basalt islands such as Ascension Id., may also (wrongly) be called "Rhyolite". Rock name were originally based on the types and compositions of minerals as seen down the microscope. Great stress was placed on the appearance of nepheline in place of a qtz-K/spar residuum, yet the difference in chemistry is trivial. Hawaiite has an andesine feldspar, mugearite has oligoclase, but the REE overlap completely.
Certain elements may change in concentration with fractionation very steeply, eg Zr may jump from 300 ppm to 2500 ppm in the last stages of fractionation in alkaline series. Estimating the volumetric percentage of these low volume high fractionates is a hopeless task. I am more than a little sceptical of some tables of "Average Crustal Composition" and suspect errors of perhaps 100% in some cases.

Statistically, a figure for, e.g., "Average K2O in 20,000 basalts of Ocean Ridge Origin" may have some significance though only if we include only glass samples and exclude all possible alkaline rocks, but then as even the tholeiitic NMORB to EMORB may range from say, 0.1 to 3% K2O with decreasing degree of melt and from 1 to 60ppm Rb, what meaning does an average have? For several elements as we have shown in the "MORBs" chapter, the histogram may be quite wide for e.g., Fe, or Ti, though in others quite narrow, e.g. for Si. We have shown, for some elements including Fe+Mg, Ca, Al, Si and Mg, for the bulk of MORB basalts the range is limited, tens of thousands of analysed MORB basalts lie between 49 and 51% SiO2 for example and plot in the "basalt triangle" on an Al-Mg-Ca diagram. Unfortunately MORBs even in this range may include both high-Mg basalt and ferrobasalt, as well as depleted N-MORB and enriched EMORB while alkaline EORB rocks are found on many off-ridge seamounts.

EMORBs are found in very slow spreading centres or failed or failing ridges or along the margins of active ridges and seem to be low pressure, very low degree partial melt. The LILE content may be greatly elevated, eg Nb>100ppm, La ~50ppm but the fractionation trends remain mainly tholeiitic (i.e. ol+cpx+plag) though the plagioclase appears later in the EMORBs. They can be distinguished from alkaline series by the steep rise in K relative to soda, the very flat La/Lu and Nb/Y and also by the relation of Fe to K, the cumulative ankaramites often having fairly constant 14% iron but no ferro-basalt peak.

One of the tasks at this point is to be able to locate rocks with abnormally high and low concentrations of elements for several reasons. One is that these may pose a health risk, eg neither humans nor animals nor in some cases plants can live on land or soils derived from rocks deficient in Bo, Co, Zn, Li, Cu, Fe, K, P, Ca, to name a few essential elements, while high levels of Se, As, Cd, Pb, Hg, U, Th, especially can also be a danger. For most elements we can only tolerate a range of about +/- a factor of 4 on either side of the mean crustal composition, a factor that people who see us voyaging to new planets within a few centuries might do well to ponder.

Metals are essential to modern civilisation and we expend enormous amounts locating high concentrations and ores of most of the elements in the periodic table. When we realise we consume 72,000 tons of yellow cake uranium oxide per year and that western countries use 1/4 ton of steel per head of population per year and one sees 290,000 tons of 60% iron ore being hauled out of Mt Tom Price and Mt Newman per day, it gets quite frightening. By 2007 annual steel production will exceed a billion tons! What rocks are likely to contain the highest Sc? Nb? Ta? All are essential in the 21st century.
Below we will give the ranges of compositions found in a range of rock types for the main petrological series.

Rock divisions used

As said elsewhere there are two major divisions of crustal rocks, those derived from sub-oceanic mantle, and those derived from sub-continental mantle. These two have fundamentally different fingerprints and different fractionation patterns and are very difficult to compare.
For convenience we may revert to the old names and refer to "sialic" crust or rocks, meaning those with the signature of orogenic andesites and derived from the sub-continental mantle and to "simatic" rocks for those with the signatures of basalts derived from sub-oceanic mantle.

In the oceanic basins we see two main types of rock, the Oceanic Ridge Basalts, stemming from the mid-ocean spreading ridges, and the more alkaline Oceanic Island Basalts seen in scattered localised island groups. On the continents there are also two main rock suites, the Orogenic Andesites forming chains of composite cones along continental margins and along incipient continental margins on offshore arcs; then we have the Continental Flood Baslts as seen at Columbia River, or in the Siberian Traps, with the same continental signature, but with their low alumina and high Fe,Ti, quite distinct from the andesite series.

Tholeiitic (or Qz-saturated) rocks are dominated by olivine and ol+cpx+plag fractionation followed by TiMt and by apatite, with a residuum of a quartz-sanidine graphic intergrowth. Large changes in Fe/Mg ratio can occur with fractionation of olivine and pyroxene and a large build-up in residual elements may take place at almost constant silica content until the TiMt point is reach when silica begins to build up, Ti-magnetite containing no silica. In large areas of the oceanic environment rocks of over even 52% silica may be entirely absent though in rare cases a dacitic rock of 65-68 % silica may be found along with intermediates. However it must be realised that the name "tholeiite" has been applied to Flood Basalts, to OIBs, to Ridge Basalts and also to the more depleted island arc members of the calc-alkaline or andesite series. There is genetically no such rock as a a "tholeiite", each one of the four main rock series may include quartz saturated members..

On some seamounts and most oceanic islands, alkali basalt begins to crystallise along an olivine-clinopyroxene cotectic, which may be 50-50 Ol-Cpx or 40-60 or perhaps lower. Many trace elements are differentially taken up by clinopyroxene and this difference in the crystal cumulate can have profound effects.

Sialic rocks fractionate to a more limited extent by removal of horneblende or a more iron-rich cpx + Opx and a more sodic plagioclase. The cumulate members correspond to the eucrite blocks often found, but fractionation is seldom strong in sialic rocks. At least some of the compositional shift from basaltic andesite-dacite is the result of different degrees of partial melt in the sub-continental lithosphere. There is a steady build-up of the K-group elements with compositional increase in silica, and in whole regions there may be no rocks of less than 54% SiO2 and often none with more than 64%. . So we cannot compare the two groups by comparing abundances of different elements at a fixed silica percentage because of the small range of silica in MORB series and lack of overlap except in a handful of cases. Likewise the range in Mg, (Fe+Mg)/Mg or Mg# in sialic rocks is quite small (usually 4% to 0% MgO) while the silica range may be large, (52 - 76%), but the rhyolitic members often appear to be third stage remelts of continental crust.
The bulk of ORB rocks have 10-4% MgO with silica close to 50-52% throughout.

The Recovery of Metals from Low Grade Ores

We are indebted for the following account of modern metal extraction methods to Mr Mike Banks, an economic geologist and consultant operating mainly in the SE Asia, Australasian area and based in Christchurch, NZ. E-mail:

Gold Extraction

With the exception of alluvial gold (still concentrated primarily by gravity methods), the majority of world production of the metal is now extracted from bulk hard-rock ore by variations of the cyanide method. Gold and silver are capable of dissolving in aqueous alkali cyanide solutions, where following concentration and clarification the commodities can be recovered by precipitation onto a metal substrate collector. Introduction of the cyanide process (first in New Zealand in 1889) revolutionized gold extraction efficiency, resulting in much low-grade ore becoming economical to mine. In the 1980's heap-leaching of ore stockpiles by cyanide solutions, without the need for fine-grinding, allowed very low grade (1.5g Au/tonne or lower) ore to become economic to process.

Nowadays, where the gold in the rock is in the form of free metallic grains (free-milling ore), but so dispersed that fine milling still being necessary, the cyanide solution is added to the finely ground rock, along with activated carbon granules (which directly adsorb the gold from the cyanide solution in-situ. This process termed carbon-in-pulp (CIP) was developed in South Africa (circa 1975) and has resulted in greater extraction & cost efficiencies. Where the gold is not free-milling (refractory ore -about one third of the world's production, enclosed in sulphide or sulphosalt minerals), ore may have to be roasted, pressure oxidised, or bacteriologically oxidised to free it prior to dissolution by cyanide.

Modern Copper, Lead and Zinc Extraction

In the past, recovery of these metals generally required fine-grinding of sulphide ores, froth flotation, roasting, smelting and electrolytic refining. These processes (while still necessary for many ores) are expensive, time consuming and environmentally undesirable. Increasingly however, leaching of large volumes of broken cobbles of oxidised base-metal ore, has proven far superior in terms of simplicity, efficiency, cost and environmental gains.

In the case of copper, over 20% of this metal is now derived from the solvent extraction, electro-winning (SX/EW) process. Sulphide ores too, can be subjected to bacterial oxidation prior to SX/EW or incorporated into the process, where mixed oxidised/ sulphide ores are present.

Basically, SX/EW involves adding weak sulphuric acid (raffinate) to broken ore either in a pre-mixer, or on the leach pads. Additions of ferrous salts initiates bacterially assisted oxidation of sulphide minerals, whilst the acid leaches metal oxides. Raffinate is applied to the top surface or ore pads and along with atmospheric oxygen trickles by gravity through the ore to be collected and pumped to the solvent extraction plant. In the SX plant, the aqueous pregnant leach solution (PLS, raffinate loaded with copper) is circulated in intimate contact with an organic solvent (kerosine) containing a copper selective reagent (extractant). The two immiscible liquids are separated by settling after passage through each extraction cell, the depleted raffinate piped back to the leach pads, the organic extractant solution to the next cell for mixing with more PLS. After passage through multiple cells, the organic extractant liquid is fully charged with copper and piped to the stripping stage where it's copper content is stripped by contact with a concentrated aqueous solution of sulphuric acid. The stripped organic liquid goes back to the first stage cell in the extraction circuit. The concentrated acid copper solution (electrolyte) is filtered to remove particulate and organic contaminants and piped to the EW (electro-winning) plant.

In the EW plant, the copper in the electrolyte is precipitated onto stainless steel cathode sheets, by a low voltage DC current passed through the electrolyte. Sheets of high purity (99.99%) copper metal are mechanically removed from the cathodes, stacked on pallets and transported to the market.

Modern Models for the Genesis of Copper, Lead, Zinc Deposits

The bulk of the world's copper, lead and zinc is currently produced from four classes of occurrence: Redact (Redox) Sedimentary deposits, Volcanogenic Massive Sulphide (VMS), Sedimentary Exhalative (SEDEX) deposits and Porphyry deposits.

Although the geological and tectonic settings of these deposits are extremely diverse, their geneses all seem to be the transport of the metal by aqueous halide solutions (predominantly chlorides), and reaction of these brines with associated sulphur complexes (or oxygen) to precipitate sulphides (or oxides). Concentrated base-metal transporting brines are generated by exsolution from felsic magma; (Porphyry copper/skarns), superheated ocean water/magmatic exsolution; (VMS), hydrothermal ocean brines; (SEDEX) and deep basin/rift generated pore-water brines; (Redox deposits).

In the past two decades, precipitation of base metal suphides by the rapid cooling of hot brines, has been directly observed from submersibles in the world's oceans. These observations of "black (and white) smokers" and analyses of the deposits from them, leave little doubt that VMS and SEDEX deposits have resulted from the prolonged action of these plumes of super-heated, metal chloride-rich fluids in the past.

This general group of giant base-metal deposits also produce a host of associated metals, notably molybdenum, gold, rhenium, silver, indium, cobalt, vanadium, uranium and others.

By: Mike Banks


Al makes up about 8% of the Earth's crust being the third most common element after oxygen and silicon. As the oxide Al2O3, it is found in feldspathic and clay minerals in virtually all silicate rocks and soils in the range of 12-20%. In spite of this, it was not produced in quantity as a metal until 1886 being an oxide very difficult to reduce. The big aluminium smelters Alcan, Alcoa, Pechiney, Billiton, Comalco still electrolyse with graphite electrodes using huge amounts of power - about 6.8 KwHr/lb or 63000 BTU's per lb.
Weathering and de-silication of aluminous rocks under tropical conditions, produces a laterite soil of sometimes great thickness consisting mainly of the hydrated oxides gibbsite (Al(OH)3) and boehmite (Al2O3.H2O), with gamma Fe2O3.

Reduction of the hydroxide to the oxide is done under pressure in autoclaves with in tall seeded towers at temperatures of, as I recall, less than the usual 220ºC. The big ALCAN plant at Arvida (Quebec) was once almost shut down because of the presence of boehmite which is stable at the operating temperatures used and was seeding all the alumina out as boehmite, not as Al2O3. They could only use an ore very low in this mineral at Arvida. We were able to devise a method of analysis using a graphite monochromator on an XRD machine that could detect down to about 0.1% and the boehmite-bearing ores could be sent elsewhere. We were very popular with ALCAN for a time!
One of the largest deposits of bauxite in the world is on the west side of Cape York Peninsula in northern Queensland at Weipa. As one battles up the desert "road" from Cairns over the best axle-breaker track the world has ever seen, it is difficult to believe this. The main access is by sea and air. However I am told that this famous track has recently been improved. Weipa bauxite is exported world wide to smelters, incl. Tasmania and NZ.

Al Consumption and Uses

In spite of the complexities of production, billet Al metal is currently priced at approx $1/lb, world production being about 22,000,000 tons. Again this is difficult to allocate to country as the big smelters are international, the Bluff Smelter in New Zealand which uses most of the power produced at Lake Manapouri in Fiordland, is owned by an Alcan-Alcoa consortium.
Aluminum metal is used in the container and packaging industry as aluminum foil (17%), in building and construction (18%), in electrical transmission (9%) and in transport, car, truck and aeroplane bodies, and engine blocks, (30%). Alloyed with quite minor amounts of Si, Cu, Mn Mg it takes on remarkable properties. Type 6016 is stiffer, has higher tensile strength, is non-work hardening and used in aircraft fuselages. Type 3024 is so stiff I have known engineering students insist "It gotta be iron!" though it is stiffer than a similar thickness of mild steel. It does however fatigue with vibration or flexing.

Al2O3 in Silicate Rocks

Al2O3 is usually found near 14% levels in basalts and due to it's presence first in plagioclase then in potash feldspar, and feldspathoids, it changes little with fractionation. It may decline slightly in tholeiitic rocks to 12% and increases in alkaline rocks, especially trachytes and phonolites to 17 - 20%. It also reaches 17-18% levels in andesites but declines to 14% in rhyolites-granites. I have found 45% Al2O3 in laterites, but what is found on commercial open-cast mines I do not know at this point but pure Gibbsite (Al(OH)3) has about 65%. Common aluminous clays containing silica can be used as Al ores but not economically at this time.

Silver, Ag

Ag (At.No. 47), while too rare to be of interest petrologically is still of large economic significance. It is ironic that in the time of Croesus, credited with being the first to mint coins in about 760 BC, they could control adulteration of the coinage by means of the colour of the streak of precious metal on a piece of slate or touchstone. Gold is pale yellow, with added copper it becomes red, with silver much paler. The scarcity of precious metal restricted inflation, the Athenians were only able to fight the Persians at sea because of the discovery of new ores at Mt Aurum which produced at it's height about 1 million oz a year.
Roman politicians as polititians always do, saw a way to quick wealth by adulterating the coinage, at the time of Caligula and Nero the sesterti were 2/3rds lead.

It has been claimed that the biggest theft of all time took place when the US Govt. recalled all gold and silver dollars and replaced them with worthless paper. Only 30 years ago the US and Canadian silver quarters were recalled and replaced by cupro-nickel of virtually no intrinsic value. History is a fascinating subject!

Different mining and materials resource organisations give highly variable figures for total annual silver mined, ranging from 12 - 18,000 tonnes. MBendi Mining News gives 16,470 tonnes.
The Cannington Mine owned by BHP-Billiton is alone expected to produce 25 million oz with 1 oz being extracted by leaching from 33 tons of "ore". MIM (Mt Isa Mines) produce a further 13.8 m oz. The Kennecot Ridgeway, (a subsidiary of Rio Tinto), mine handles 15,000t of ore per day.
According to London Fix, the current value is $4.52 - $4.55/oz.

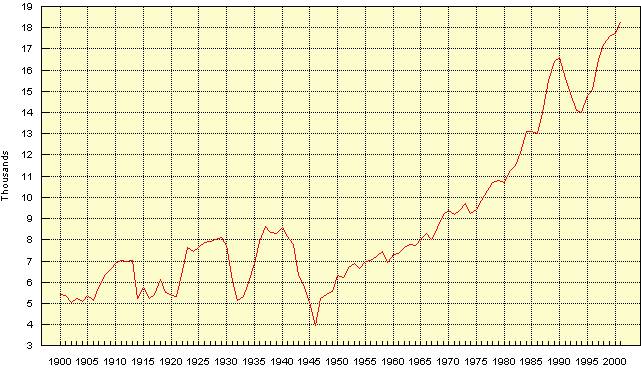

graph of silver production
Tonnes of silver recovered by year

Fortunately Ag is recovered as a by-product of Pb operations (remember the 10oz Ag per ton of galena at Broken Hill?) or Cu-Zn as on it's own, most Ag recovery could not be economic.
In old hydrothermal volcanogenic deposits, Ag is usually alloyed with gold as electrum, see section on Au.

While silver plate and table ware is no longer popular, Ag finds heavy use in the photographic industry because of it's sensitivity to ionisation by light. This use is declining rapidly with the edvent of the digicam, the "film" for which is much cheaper. In many countries, eg India, Mexico, Indonesia, silver, heavily alloyed with Cu, is extensively used for jewelry.

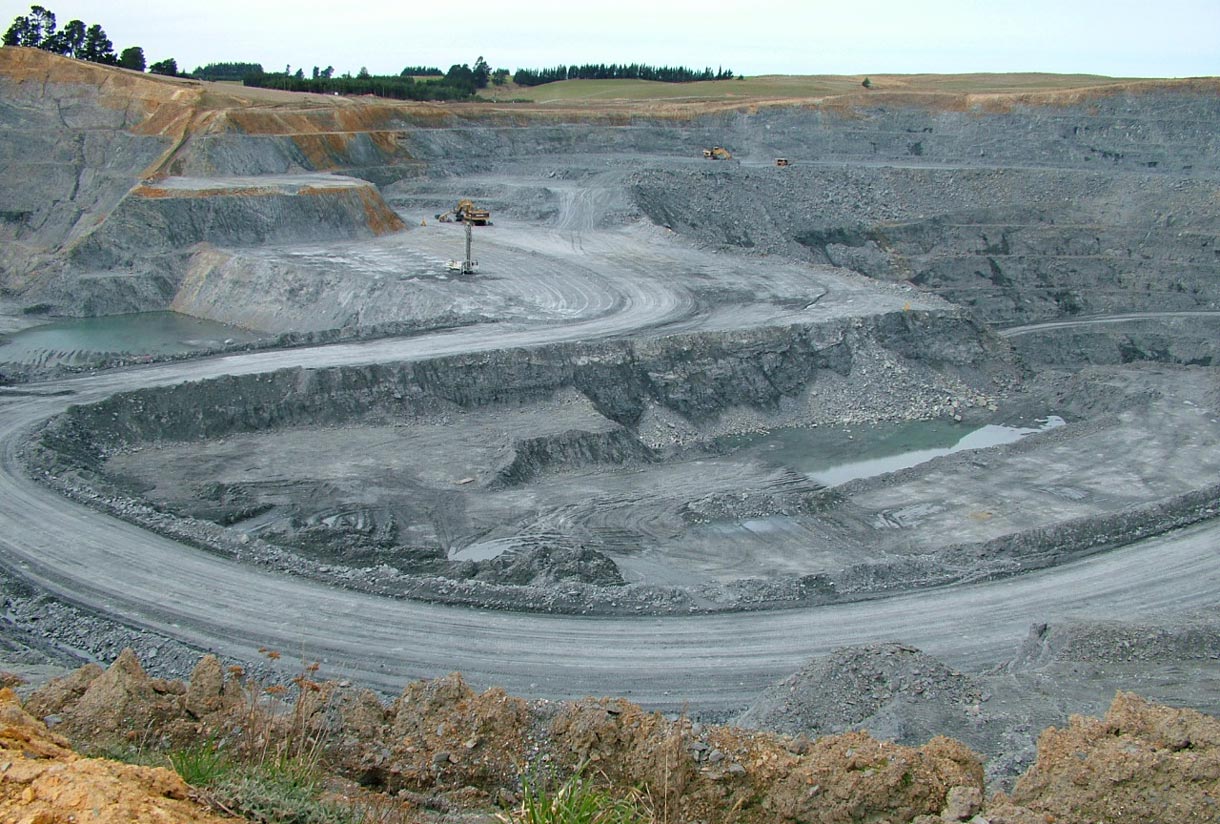

One of half a dozen pits at the MacRae's Flat mine in Eastern Otago NZ. 183,000 oz (= almost 7 tons) are expected to be won in 2004. The complexity of the separation plant exceed that of oil refineries! It includes an autoclave operating at 200 deg+C.
Their exploitation cut-off point is 0.7g per tonne! They employ 250 men and last year made a $7M USD profit.

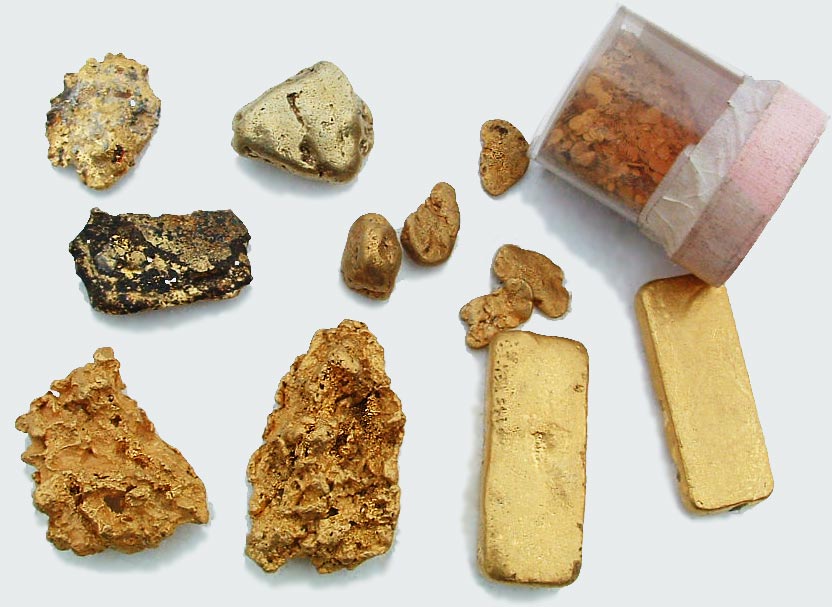

Gold has been mined for at least 5000 years, and the granitic terranes of Saudi Arabia are pock marked by ancient "King Solomon's Mines". Silver was even more important and tributes or taxes were assessed and paid to the "Great King" of Persia in classical times in talents of silver. Herodotus lists the taxes of the main eastern Mediterranean countries and quite small provinces such as Cilicia and Cappadocia were assessed at several hundred talents, a Euboean talent weighing 64lb.
Gold (and silver) are found in old volcanic provinces such as the Coromandel Peninsula in New Zealand in fossil fumarolic areas. In high-grade chlorite schist terrains as in Otago, New Zealand, gold (present in all rock at a few ppb) is mobilised during metamorphism and concentrated in quartz veins. Gold, along with quartz and feldspathic sand and gravels are washed downstream where the much high specific gravity of gold causes it to concentrated in places of sharp current slackening, on shingle bars and points, for the "placer" deposits. The other day I saw some flat nuggets about 1/2 in across recovered from cracks in schist high above a river where they had one been lodged by flood water.

Production in New Zealand

In the Coromandel fields about 51 million ounces of silver and 10.5 million ounces of gold have been taken. The Martha Mine is still operating, the solution techniques for dissolving gold from finely milled or being very efficient. A million oz. is approx 37.2 tons. (at 12 oz Troy/lb)

The South Island alluvial gold fields have produced about 20 million-oz to 1966. The Macraes Flat mine NW of Dunedin is currently producing about 6 tons per year. Production began in about 1994 and the millionth oz was produced in 2002. Probably about half of the total 20m oz found in Otago came from the Shotover River near Queenstown, often claimed to be the "Richest river in the world" . The rounded nuggets on the right and also the flakes in the container come from the Shotover, as do the melted bars. The dendritic nuggets on lower left are typically Australian from Victoria. Courtesy of Dave Saxton, helicopter pilot, Haast.

World production

In 1847 the total world production was 75t of which half came from Russia. Then came the series of classical gold rushes to rich placer deposits.

USA ( mainly on the Sacremento) peaked in 1851
Australia (mainly Ballarat and Bendigo) peaked in 1856
The Klondike (USA) total
South Africa (mainly from the Johannesburg mines) to 1970 produced
Kalgoorlie (Australia) [240t total annually] to date
World total in 1990
World total in 2002
World total of all years

These figures are according to the World Gold Council.


Ba++ occurs in silicates mainly in potash feldspars substituting for K. The main source is as BaSO4 (barytes) found in evaporites in desert salinas. About 5% of the very large industrial use is as a filler in plastics. 95% is used by the drilling, (mainly oil) industry as a drilling mud because of it's high specific gravity. It both lubricates the drill string and prevents the uncased hole from collapsing.
Ba can be as low as 5-10 ppm in NMORBs, 560 ppm in EMORBs, and rises to as much as 1200 ppm in trachytes-phonolites before collapsing in higher differentiates, apparently with the incoming of sanidine in potassic trachytes etc. No such collapse has been seen in andesitic rocks where Ba can reach 2500 ppm in Vesuvius and 3500ppm in Tibetan ultra-potassic rocks.
The distribution pattern is quite different to the log-normal pattern seen for Zr, Nb, Rb, etc. as it rises linearly to the point of collapse, if reached.

Ba in MORBs and OIBs

Ba varies widely with increasing alkalinity, tholeiitic basalts such as Puu Oo in Hawaii having 100-120ppm, K/Ba=33, compared to 300-500 in alkali basalts-basanites in which the K/Ba =30 for Tristan, 26 for Vesteris seamount, ~35 for St Helena, 32 for Mt Sidely, 23 for the Tubuai nephelinites etc.
Again Macquarie Id parental basalts partial melts are anomalous for MORB rocks, the average K/Ba being only 26.
The Ba collapses with fractionation at 4.5 % max K2O, 1050ppm Ba, in Gough, (LeRoex et al, 1985) and at 1300 ppm in Tristan. In St Helena, a max Ba of 1000 ppm is reached but only an uncertain scatter of points is seen beyond, Chaffey et al (1989). In Heard Id. it is 6% Max K2O, 800 ppm Ba, (Barling, 1994). In Mt Ross, (Kerguelen) Ba max is 1100 ppm and the collapse takes place at 5.5% Max K2O.
Before the collapse point Ba/Rb ratio remains fairly close to 10 -15.

|__| Ba/Mgo paths for Atlantic OIBs.
|__| Ba/K20 for Macquarie, EPR, and Tristan.
In the Macquarie parental melts, depleted high degree melts may have sub 5ppm but up to 560 ppm in extreme EMORBS. Thus fractionated EMORB will have very high Ba.

Ba in CFBs

Ba is always elevated in CFB rocks along with the Rb, Cs. Th, U and may reach very high levels. Ordinary CFB basakts may be int he range 200-300ppm in but in fractionated small degree melts, Ba goes out the roof. This in the Umatilla Basalts of the Columbia River, Ba reaches 4000 ppm and in the alkaline late stage Snake River 3200 ppm.
Thus Ba in normal volcanic rocks may range from 2.0 to 4000 ppm, one of the larger elemental spans to be seen.

Ba in Sialic Rocks

One can only say Ba is extremely variable. In the south-central Chilean group, the centres for which there is reasonable data follow what we will call the Puyehue trend. These include volcanoes Planchon Petaroa, Azufre, Llaima, Villarica, Copahue, Co. Antuco etc with a Ba(60) ie, a Ba content at 60% silica, of 500. Laguna del Maule at 36S also has a Ba(60) of 500 but when plotted against silica has a less steep trend. (Frey et al, 1984).
In Colombia, Peru, N. Chile, the fairly potassic Parincota (K(60) = 3), the Ba(60) is 1250, for Sangay 1100, Galeras 750, while Nevado del Ruiz is high but variable. The trend is much flatter than for the Puyehue trend.
Island arc series have flat trends with Ba(60) of <150 for Tonga- Kermadec and 175 for the South Sandwich Group, so that the Puyehue trend lies between island arc and moderately potassic rocks. Very High K orogenic rocks such as the Roman Province, the Galatia Province, the Tibetan Ultra High K rocks, or Muriah in Java, show very broad scatter, or do not rise to high silica values. Vesuvius, if the Ba/Mg trend is projected to 0% MgO would have 3000ppm.

Ba Anomalies and Ba/Rb

Many orogenic series show variable Ba seen in fingerprint diagrams as a positive or negative anomaly relative to Rb and Th. Volcanic centres showing a -ve anomaly (given as highest level/EMORb ratio) include Sakurajima, (5); Puyehue, (10); Lascar, (7); Cerro Tuzgle, (4); Taal, (Luzon), (7); Negros Id, (8); Vesuvius, (7) and Santorini, (5.5)
Centres showing little anomaly, or a slight -ve anomaly becoming +ve, include Planchon Petaroa, (11); Cerro Redondo, (7); Pocho, (8), Llaima, (14); Pino Hachado, (12); Lanin, (11); Umnak (12.7).
Positive anomalies are seen in Sangay, (20); Galeras, (17); Nevado del Ruiz, (18?); Parinacota, (32); Marianas Is, (15?); Fuego, (25).
There seems to be no correlation with geography, amount of any other element, or tectonic environment. Two of the most negative are Vesuvius, an extremely potassic leucite-bearing series, and Santorinia, a low K arc series.
The most Ba enriched series of all are the Umatilla CRB's which have up to 4500ppm Ba, and a Ba/Rb of 74.
However it must be said that Ba is difficult to analyse by XRF, one either uses a weak L line of high background or a high energy Ka line with such penetrative power it is impossible to make a sample infinitely thick. It is possible that some of the variations are analytical as correlations are seldom better than 0.6 - 7.

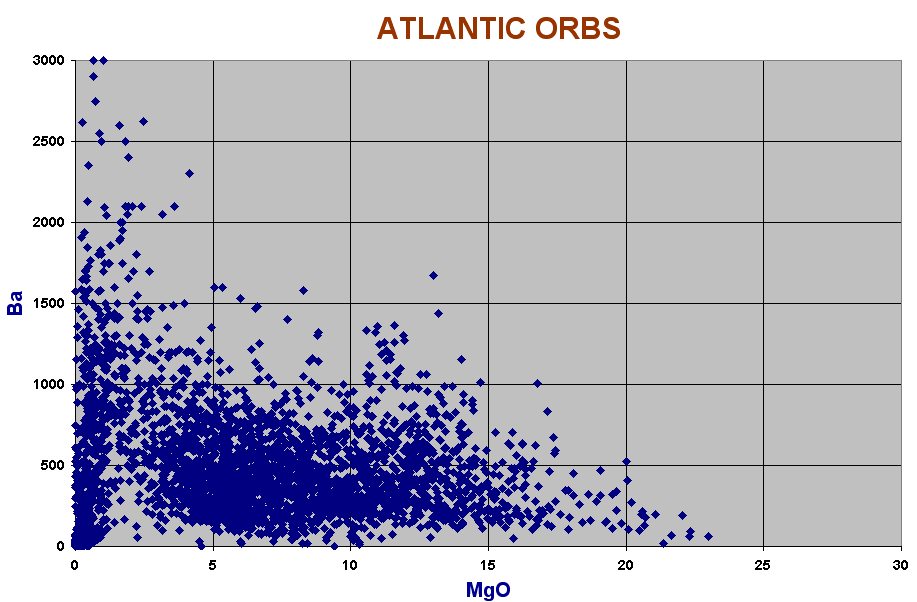

Distribution of Barium in OIBs

Variation diagram for Barium.

Carbon (coal and oil)

These have nothing to do with igneous geochemistry but while we are looking at the frightening metal consumption figures, let us take a look at those for coal and oil. These resources are mainly used in energy production, though for coal up to 25% is used in some countries as a reducing agent in iron & steel production and 10% in cement production.

Total World Production of coal: 2,500,000,000 tons per year
Total World Production of oil: 85,000,000 barrels per DAY!

(The barrel being the standard 44 gal imperial = 50gal US drum = 159 litres)
Amuse yourself by calculating the height of a pyramid of a years supply of coal! Or a stack of 31 billion barrels! Of course, much of this becomes CO2, which in a closed system has inevitable consequences.

These numbers arouse similar feelings to those expressed by the Iron Duke as he reviewed some of his less impressive troops before the Peninsula campaign, "They may not frighten the French, but by --- they frighten me!"

Indonesian open-cast coal mineIndonesian coal mine utilising small contractors. Coal seam up to 20 -40 metres thick, Miocene age, low sulphur 0.1%, 3% ash, 5,300 kcal/kg.
Stripping ratio 0.5 :1. Distance from export port - 9 km. Very cheap form of energy but 30% Total Moisture.
Photo: Peter Gunn, Coal Consultant
Khazakhstan open-cast coal mineEkibastuz coal field in North East Kazakhstan. Bituminous coal of medium volatile rank 170 metres thick. Reserves in excess of 1.3 billion tonnes. Mined by bucket wheel excavators on benches. Coal quality 42% ash, 0.6% sulphur and 4,000 kcal/kg (16 GJ/tonne). Burned locally in power stations that used to supply the USSR. Stripping ratios are 2:1 maximum.
Photo: Peter Gunn, Coal Consultant

The Millennium Star
The De Beers Millennium Star
found in the Congo 1992
203 Carats, 3 yrs to cut by laser

Diamonds, like gold do not have any great intrinsic value except as an abrasive, diamond being one of the very hardest materials known. Relative to weight they are the most highly priced of known minerals, animals or vegetables, and all because they sparkle in a light beam. So does zircon and most people would not know the difference. However...
Diamonds are measured by the carat, this being 0.2g.
So 5,000 carats = 1 kg, and
5,000,000 carats = 1 metric tonne.


According to the World Diamond Council, the world production for 1999 was:

Australia; Argyle Mine, Kimberleys
29,784,000 carats
23,000,000 carats
21,348,000 carats
16,200,000 carats
South Africa
9,733,000 carats
2,500,000 carats
900,000 carats

The world total being 111,038,000 carats, or 22.2 tons, which is quite a heap. However, if of 6 billion people, 3 billion are female, and on average 1 in 50 are married each year and is given a 1 carat diamond ring, half the production must be gem quality. In the Argyle mine (actually situated on "Stumpy Michael's" old Lissadell Station, not on Patsy Durack's Argyle which is now underwater, see "Grass Castles in Air" by Mary Durack), only about 5% of stones recovered are gem quality, 55% are industrial.
At $66 per carat the total works out to a value of about $7.3 billion, but the price of cut stones as well as the very high grade uncut is incredibly variable. A 181 carat stone from the Areador Mine in Guinea sold uncut for $8,618,177.
Diamonds are formed from carbon or graphite at depths of 150 to 200 km down and "kimberlite" diamond pipes are usually associated with alkali basalts. This pressure is of the order of half a million psi which make one wonder why both diamonds and the associated garnet etc, do not explode at surface pressures?
It is interesting that graphite is a lubricant and the incredible difference in properties of the two polymorphs lies solely in the pressure at crystallisation.
The largest diamond found was the 3,106 carat Cullinan Diamond, ie, about a pound and a half which would make a fair engagement ring. No price has yet been put on the "Millennium Star"; a pear-shaped cut blue diamond of 203 carats.
Artificial diamonds are called Moisanite, after (guess who?) Moissan first made artificial diamonds by placing lumps of graphite in molten iron and letting it cool and shrink to provide the pressure.

The latest diamond field find is that of two Kimberlite pipes in the Otish Mountains of northern Quebec by Ashton Canada and associates.
Many years ago we flew in there, counted the radioactivity of the Otish Quarzite, collected some sample of Otish Gabbro for analysing, got eaten by a few million black flies, deerflies, caribou flies and no see'ums and came home. Don't think I tripped over a single diamond, I THOUGHT those bits of shiny crystal lying in the caribou moss were bits of Otish quarzite!. The pipes were found after extensive sampling of drift for kimberlite indicators, chrome diopsides, pyrope garnets etc.
Even the "Lampropyre" shown in the Archaean chapter, is now thought to be kimberlite associated...


Graphite is a polymorph of carbon and diamond, being formed of hexagonal sheets of C. These slide over one and other giving it its good lubrication qualities.

Uses of Graphite

Graphite is of course used in "lead" pencils, and as the anode in C-Zn alkaline battery cells. Latterly there is prophesied to be a great expansion in graphite use in fuel cells. It is used as electrodes in both electric Bessamer furnaces used in steel production and in the electrolytic reduction of alumina, the electrodes I have seen being 6 - 10in diam. Graphite stands considerable heat, especially if oxygen is excluded. We used graphite crucibles for many years for melting rock-powder + lithium tetraborate for XRF analysis at about 750 deg C. The graphite slowly burned away but the crucibles could be used 2-3 times and were cheaper that Pt-Au. It is used as an electrically conductive lubricant and as a self-lubricating seal in some water pumps and oil pumps.

Sources and Production of Graphite

Graphite needs moderately high pressure to form and occurs in graphitic marbles that have been subject to amphibolite to granulite facies metamorphism. Up to 15% of the rock may consist of rounded lumps of graphite. Weathered marble for preference is crushed and the graphite separated. Graphitic shales also occur, but are not usually used as "ore".
Canada produced 27,000 tons in 1994. More recent and world-wide figures have not yet been located. In 1989 the price was only $1.3 per kgm, and is still low, so some graphite mines are on "hold".

Carbon dioxide

Of course, all these horrendous amounts of oil and coal and wood and natural methane-propane-butane gas (84.2 trillion cub. ft. for 1999) consumed by the six billion people that we share this now relatively small planet with, end up to a large extent as CO2 and is emitted into that vast sink - the atmosphere. Wood is the major source of heat and cooking fuel in undeveloped countries so perhaps this should be discussed along with the usage of coal, oil and gas.

Wood consumption has declined slightly as more countries have cleared their forest so that huge populations no longer have access to it, and its place is taken by coal, oil, gas, with electricity from hydro -power and from atomic energy. Between about 1960 and 1988 wood consumption was fairly static at 0.65 cubic m per person per year, but since 1988 it has declined to 0.55 m3/cap. The forested areas have halved in about the last half century to about 3 billion ha, and continues to decline as planting has, on average been minimal. The International trade in wood at $130 billion per year is the third largest commodity, but world wide 63% of all wood is burned as fuel with industrial wood use accounting for 1.05 billion m3 according to Dr South of Auburn University, USA. The US, with 5% of the world’s population consumes 20% of the world's wood.

The carbon dioxide produced from man-made industrial emissions averages about a metric ton of C per person, though in some small Arabian oil-producing states it can be as high as 25t per capita because of flaring off of gas at oil refineries. With the setting fire to the Kuwaiti oil wells by the Iraqis when they were expelled from the country, 130Mt of C were released in 1991 alone. An industrial state like Germany releases 216 million tons, (or 2.63 t per capita), more than the total for the whole of Latin America.

World wide emissions in millions of tons C for the industrial countries in 1999 were 3649Mt and a further 2621Mt for the "developing" countries.

Above figures come from Marland, Bodin and Andres, "2002 Global, Regional and National CO2 Emissions".


Cd (= El. No. 48) has similar properties to Zn and is found in zinc ores as CdS substituting for ZnS. It is occasionally found pure as Greenockite. It is recovered during the electrowinning process at a rate of approx. 3 kgm/ton Zn. Prices are erratic having recently dropped from about $12/lb five years ago to approx. $1. Worldwide productivity figures have not been found but US productivity recently was 1100t.

Cd finds uses in NiCad batteries, in plating fasteners, and in other electroplating. It has a low temperature of evaporation of 767 deg C which probably explains its use as a cheap rust inhibitor in place of Zn. However a cadmium coating wears off quickly and is not nearly so effective as Zn, however it keeps cheap fasteners looking presentable in a shop. It also finds application as a neutron absorber in nuclear research.

It is poisonous as are other heavy metals Pb and Hg, and one wonders about welders who casually weld Cd clad steel.

As Zn is only present at about 80 ppm levels in basalts, it can be guessed that Cd is present at sub ppm levels and is not of great interest to the petrologist. However, Kamenetsky's data for the Macquarie parental melts show a linear range in Cd from 0.15 in NMORB to 4.25 ppm in extreme EMORBs. That is no non-accumulative basalt can have less than 0.15ppm!!


As these two elements are so intimately associated (as are Mg, Ni, Fe; or Zr,Hf) they can be considered together. In primary rocks these two elements are present mainly in the plagioclase feldspar solid solution series with the two end-members anorthite (CaAl2Si2O8) and albite (NaAlSi3O8). Anorthite is the high temperature end member being divalent so that the early crystals forming in a basalt will be calcium-rich of perhaps An 70-80, ( i.e., 70-80% of the Ca end member) while dacites or rhyolites might contain oligoclase or albite of An 30-10. Feldspars tend to weather mainly to clays. The Na content of Ca-rich pyroxenes is surprisingly low, so that pyroxene formation may alter the Ca/Na ratio rapidly.
Sodium tends to be leached out of weathered rocks and taken into solution as the carbonate rather than as NaCl. Where the massive amounts of chlorine come from is something of a mystery, most rocks containing at most a few hundred ppm but it has been shown that chlorine circulates from sea to atmosphere, to soil to stream-water to sea.. Land-locked lakes in desert areas are always salt pans with thick basal layers of halite (NaCl) along with minor KCl and nitrates.
In alkaline undersaturated end-member rocks the soda is likely to form nepheline (NaAlSiO4) or even analcite instead of a feldspar.

NaCl use

We currently use about 214 mt of NaCl mainly domestically, of which about 1/3 is obtained by solar evaporation of sea-water, about a third by mining sold rock salt (halite) and a third from brines. Australia produces about 8.5mt from solar evaporation, worth some $300 million, as seen near the Karatha, Roebuck Bay area.

NaOH, the ultimate alkali, used in so many industrial applications is now produced by the electrolysis of NaCl. Sodium metal while a good conductor, is soft and far too reactive to be of much application except under carefully controlled conditions.
Seawater has a salinity of, on average, 3.5% of dissolved ions, mainly Na+,Cl-. However, there is a large difference between the cold waters of the Baltic and those of the Red Sea. .

As fresh water becomes a scarce commodity and deserts expand it is a consolation to note that prices as low as $1/m3 are being quoted for desalinated water produced by reverse osmosis. However, calculate what it would cost to fill Lake Superior with desalinated water, before we cheer too loudly.


Calcium carbonate or limestone is so widely used for soil pH control, as a fertiliser and as a chemical reagent and is so widespread as sedimentary limestone and marble and is so available that it seem no record is kept of it's bulk use which probably hits the billion tons mark. Some carbonate occurs in primary carbonatite magmas but by far the greatest amount forms from the breakdown of anorthite minerals during weathering and reaction with atmospheric CO2. Ca is in solution in the sea as the bicarbonate. Excess atmospheric CO2 is absorbed to form insoluble CaCO3, however there is still a definite (short-term?) increase in atmospheric CO2.


The crystallisation of all basaltic magma results in more Ca and less Na being removed in the first formed crystals than is in the magma. In actual rocks at least half the decalcification is brought about by the simultaneous formation of clinopyroxene which contains about 20% CaO and negligible soda. After protracted fractionation most of the Ca will have been removed and a great deal of Na will remain. Phonolites which are the end product of fractionation of basanite may have up to 10% Na2O and less than 1% CaO, the basanite having about 10% CaO and perhaps 2.5% Na2O. A few other elements are affected by this process, eg alumina will increase in phonolites to about 21% or more from a starting point of about 14%, Sr will build up and then decline with the incoming of sanidine and sodic feldspar.

Na and Ca in primary MORBs & OIBs

The Macquarie primary melts show a decline in CaO and increase in Na2O from large to small scale melts from 2.3 to 4.2% Na2O. This explains why we see the same range in different MORBs. K increases with Na but more steeply.
The Westerman Islands, Tristan, St Helena, Madeira show similar trends with basalts at 12% CaO, 2% Na2O, trending to trachy-phonolites at <1% CaO, 9% Na2O. Oddly, the nephelinites of Mangaia, Tubuai, & Rurutu of the Austral Is maintain a much higher CaO, probably because a nephelinite is a basalt rather than a phonolite.

Na and Ca in Arc Andesites

The more primitive arcs, (Scotia Arc, IBM, Tonga) are quite calcic with basalts at 13% CaO, 1.5% Na2O trending towards soda dacites at <1% CaO and 7.5% Na2O. The presence of the high soda Deception Island, discussed elsewhere, lead to two separate trends for the Scotia Arc.
Mature arcs such as the Andes are less calcic, more sodic in basaltic andesites but very variable. At 3% CaO, soda may range from 2-6%.


Co has a lower partition coefficient than Ni in olivine. In the 1959 Kilauea picrites I found 250 ppm Co in olivine compared to 60 in the undifferentiated melt, so we have a partition coefficient xtl/liq of about 4 compared to 13 for Ni.
While Co is recovered as a by product of Ni refining, the main source is as a suphide, in Cu deposits, typically cobaltite (CoAsS).
Ironically, the famous mining town of Cobalt, Ontario was initially developed as a silver mining camp, but veins of cobaltic sulphides were also found. The story I was told when visiting INCO at Sudbury which is worth repeating, was than a man employed in felling the spruce forest ahead of a railroad construction team found this soft rock near the camp which he used to whack his axe into at night. Finally someone who knew a little about minerals got curious, it was pure cerargyrite, (AgS) or "Horn silver"!

Co production

Cobalt is used in special corrosion resistant and High Temp. alloys, also as a pigment in ceramics ("cobalt blue").
Total world production is about 25,000 - 32,000 tons according to source of information. Production in Australia, now about 5,700 tons, is going up sharply, 2000 tons pa is expected from the new Cause Ni-Co mine NW of Kalgoorlie being developed by Falconbridge. The current price is from $22 to $33.50/lb. the Congo which produced 19,000 tons in 1990 is now down to 7000 tons pa because of social breakdown and continuous civil war.
Co is essential in digestion and animals starve to death on cobalt deficient soils, though I do not believe it affects human beings.

Co in MORBs and OIBs

The most basic glasses from Kolbeinsey Ridge north of Iceland , have 50 ppm, from SEIR 40-50 ppm and from the EPR 40-50ppm. Undifferentiated Kilauea has about 60 and Loihi 50.
There is disappointingly little data for the Hawaiian picrites, none for Mauna Loa or the Mauna Kea MKSD drill core, except that of Albarede, (1996, J.G.R.B101) who did not analyse major elements.
Picrites from the Koolau Shield (Frey et al, 1994) and from the Hamuku lavas of Mauna Kea (Frey and Garcia, 1991) have a maximum of about 90 ppm at 22% MgO but there is an unexpected 10 ppm difference between these trends. There is no Co data for the summit hawaiites of Mauna Kea or for Puu Oo, or historic Kilauea (Pietruska and Garcia, 1999, J.Pet.40), nor is there Co data for the Piton de la Fournaise picrites or the Cerro Redonda picrites.

|__| MgO/Co for Hawaiian picrites.
|__| MgO/Co for Atlantic OIBs.

Co in Sialic Orogenic Andesites

All andesitic rocks seem to show a similar trend of a shallow dome shaped distribution with a maximum at about 30-40 ppm and 5% MgO. No significant difference is seen between island arcs and Mt Vesuvius.
There is so little data for Flood Basalts that no meaningful conclusions can be drawn.


The behaviour of Cr is at first sight very like that of Ni, it is very high in picrites and dunites or serpentinites and low everywhere else. However trivalent Cr+++ does not enter into olivine but forms a Cr spinel, the very first mineral to form in a basalt. Tiny grains of spinel get grown into olivine and when the olivine (or orthopyroxene) accumulates, so does the Cr. In extreme fractionated basaltic intrusions of great size such as the Bushveldt or the Stillwater, chromite may form it's own cumulate layers, almost pure. Mining chrome is in such cases very simple which may explain its current very low price of $85/ton.
Cr does enter clinopyroxene in amounts up to perhaps 400 ppm.

Cr uses and consumption

The main uses of chrome being in plating, and in stainless steels and alloys it is surprising that the world production is now 12 million tons of chromite, which makes one wonder what would happen if chromed bumper bars came back into fashion. Two thirds of this come from Australia and the ex-USSR.

Chrome in MORBs

Kolbeinsey Ridge glasses have a maximum of 400 ppm as has site 504 in the Galapagos Rise. The EPR has slightly less at 300 ppm (Regelous, 1999); 320 ppm (Niu & Batiza, 1997); and 340 ppm (Niu et al, (1999). Cumulative harzburgites from the Garret Transform have 3000ppm (Niu & Hekinian) Parental melts in ORBs have 120 - 400 ppm in rocks of 6 - 10.2% MgO so that any ORB basaltic glass with more than 400 ppm should be treated with suspicion..

Cr in OIB picrites and peridotites

Mauna Loa, Mauna Kea, Kilauea Iki, and Piton de la Fournaise picrites all have a maximum Cr of about 1900 ppm in picrites of 22.5% MgO which extrapolates to a pure olivine with about 3500ppm. The trends are less regular than seen for Ni and the different centres are not distinguishable.
I am not aware of any modern Cr-Ni-Co data on dunites which are almost pure olivine rocks with specks of chromite. (The name comes from Dun Mountain in Nelson, "dun" being an old Scottish word for a red-brown colour, eg, a "dun cow"! They are not 'Doonites" as one sometimes hears). Mountains of dunite weather red-brown and are totally devoid of vegetation as one sees on The Olivine Hills, the Red Hills, or Mt Raddle only miles from where I sit.
The Pu'u O'o series which one assumes are primary melts have a range of <300 - 550 ppm again with a marked offset from the fractionated members.
|__| MgO/Cr for OIB picrites.

Cr in Alkali Basalts

The OIBs St Helena, Tristan, Gough, Cape Verde Is. etc again have slightly variable trends on different islands with a maximum in cumulates of about 1000ppm.

|__| Cr/MgO for OIB islands.

Cr in Orogenic Andesites.

The great bulk of orogenic andesites only rarely exceed 7% MgO and 150-160ppm Cr.


Cs is atomic No. 55 and has no less than 32 isotopes. The single outer orbital electron makes it extremely ionic and is the most electropositive and alkaline of all metals. Pure Cs, is, like Ga and Hg, liquid at room temperatures.

It occurs mainly in the minerals pollucite and lepidolite but a single pollucite deposit at Bernie Lake, Man, is claimed to have 300,000 tons of pollucite with 20% Cs. At Lac du Bonet this is being developed into a heavy drilling mud which seems to be a scandalous waste of a rare element. Pollucite forms a dicontinuous series with analcite and has a composition CsSi2AlO6.

Cs is used in radiation detectors and in Cs clocks, the latest Cs clock at the National Institute of Standards being accurate to <1 sec in 20 million years. It's great attraction for O2 is used to decontaminate electronic tubes. The current price is about $30 per gm.

Cs is the most "lithophile" of all elements and shows the greatest relative increase with fractionation, with decreasing degree of melt and with alkalinity. That is, in partial melts, the amount of Cs goes up very steeply, but the ratio of Rb/Cs = 95; Ba/Cs=940 and K/Cs=23,500 remain constant. In MORBs the amount is very lw, often<1ppm and Cs is very prone to alteration so its geochemical behaviour is not so easy to define. Moreover, due to its low concentration, it is only recent data for which Cs is available in any amount though ID determinations for Cs have been made for at least 30 years, they are in no great number.

If we compare the EPR MORBs with a tholeiitic island such as Cerro Azul in the Galapagos we might expect the Cs to be much higher in the island rocks as are the K, Rb, Ba. We might also expect that the ratio of K/Cs or Rb/Cs would be somewhat lower. This does not seem to be the case. Comparing these two group together with the potassic OIB Heard Id, we find the ratio K/Cs is similar at ~34,000. If we compare Cerro Azul with the EPR we find Cerro Azul has less Cs relative to Nb, as Nb goes up very steeply in islands, but it has double the Cs relative to Zr or to MgO!
Macquarie primary magmas have from almost zero up to 0.65ppm in extreme EMORBs.

As there is no or poor data for most OIBs the variation between islands cannot be discussed as yet with any degree of certainty, though good data has appeared in the post 2000 era..

In arc rocks Cs is extremely variable as are all the rest of the potassium group elements. At 2% K2O in the Indonesian rocks the Cs ranges from 2 - 12 ppm while in the Scotia Arc at 0.6% K2O the range is from 0.1 to 0.9 ppm. Cs is high in the ultra-potassic Mt Vesuvius, as might be expected, with a range of 12-22ppm and a K/Cs of 3390, but the Alban Hills, though highly variable have as much as 60ppm (Peccarillo etal, 1984).

Cs is very low in amount and highly variable also in Continental Flood Basalts. The CRBs, Parana Basalts and Ferrar Dolerites have a K/Cs in the range 13 - 25,000, that is, they have more Cs than MORB but less than OIB.


Cu is one of the most metallic of metals. It is highly ductile, malleable (can be drawn into wire at quite low temperatures) and is one of the best conductors of electricity, narrowly beaten by silver and gold. It is also sonorous (brass bands) and relatively corrosion resistant. However bronze winches at sea tarnish like the very devil, polish them to a mirror and they will be tarnished by a passing rain shower, (but not corroded). Cu was (we believe) the very first metal to be smelted. A hot fire may well have reduced malachite to native metal accidentally. We do know that copper has been used for tools (even hair combs) for close to 10,000 years. Accidental alloying with coexisting tin shortly afterwards gave rise to bronze which is much harder. Today, bronzes and brasses (Cu + Zn) are used in a huge range of alloys.

Al may be used for high-transmission lines because of lower cost and weight, but in electric motors and integrated circuits where large savings can be made because of the lower volts required to push electrons through wound armatures, Cu is always preferred. We currently use over 10,000,000 tons Cu per annum, about a third of which is recovered from scrap.


The main ores are of pyrrhotite (CuFeS2), bornite (Cu5FeS4) covellite (CuS) and chalcocite (Cu2S). In the oxidised zone above ore bodies where the primary ore is exposed to atmosphere, a cap of green malachite and or blue azurite may form, these being carbonates-hydroxides. At the famous Bisbee, Arizona mine (now closed) the ore, in addition to malachite-azurite (of which I have a nice sample,) includes a thick vein of pure native copper. The Lavender Pit at Bisbee ended at a 1 mile x 0.5 miles area and 900ft deep, with 46M tons of overburden being removed before the pit began. The Sonoran Desert of Arizona still produces 60% of the total Cu output of the USA.

Chile is the world's greatest produce of copper, and the Chuquicamata mine is the biggest. However, concern for the environment is not one of their greatest concerns and dense clouds of sulfur dioxide and arsenic fill the valley, and lung problems among workers and birth defects are common. The United States is next in production followed by Australia and Canada, both producing about 16%. Mt Isa has for many years been Australia's largest copper producer but will soon be bypassed by Olympic Dam in South Australia which will soon produce 245,000 tons of Cu per year.

According to the London Metal Market, bar copper was a few years ago selling at $1.20/lb in bulk. No year 2002 data is available as yet. Again, regarding the complexity in mining, crushing, solvent extraction, electro winning, concentration, smelting and final electrolytical purification - such a low price is almost unbelieveable. Very efficient, those fellows.

Deposition of Cu

Cu sulfides are more volatile at lower temperatures and Cu is more "chalcophile" than most other metals and ores are found in a wide variety of environments. At Sudbury copper ores, mainly chalcopyrite, occur along with nickel in roughly equal amount. In nearby Kidd Creek copper is found in permeable rhyolite tuffs. As rhyolite seldom has more than 10ppm Cu we can assume the ore was introduced. Large gabbroic and komatiitic intrusions below provide a heat source. Old volcanoes in Chile associated with fumaroles which have been emitting sulfur gasses for centuries show copper mineralisation where deeply eroded. Copper ores are associated with either gabbroic rocks or with calc-alkaline volcanics, as in Chile, Peru and the large and controversial Bougainville Copper mine in the Solomon Islands.
Even specialists in the field are somewhat vague when speaking of origins in terms of "mineralising solutions" etc. While mineralisation if found around "black smokers" along oceanic spreading centres though circulating hot brines must play a part., Cu ores are not often found in ancient MORB rocks. We hope to add more to this field when precise information becomes available.

Cu in MORB rocks

Cu in general is found at a maximum of 80 - 300 ppm in basaltic rocks declining linearly to only 5 - 15 in rhyolite - trachyte. Cu also declines with dilution by accumulative olivine, Ol + Cpx, Ol + plag etc so the most Cu-rich magmas are those of 7.5 - 10 % MgO.
In the EPR Cu occurs at 90ppm in basalts declining to 40 ppm in icelandite, rhyodacite. Very depleted and more basic MORBs such as Kolbeinsey Ridge have a maximum of 170 ppm at 8% MgO. It is unfortunate that Cu diagrams almost always show a good deal of scatter, due to localisation into immiscible melts which do not behave as crystals, as the peak in copper might define the parental magma. It appears to do so but only roughly. Why does the Cu decline with fractionation? It is almost excluded by olivine, showing a negative straight line trend in the picritic 1959 Kilauea series (Gunn, 1971), while amphibole from Kerguelen rocks show up to 60 ppm max, ( Moine, et al, 2001, J.Pet.42). The only good study of clinopyroxenes by laser ablation ICPMS technology (M. Norman, pers.comm) on the clinopyroxenes of 1955 Kilauea, unfortunately did not include Cu, nor did Yang et al, 1998, on Oahu cumulates. The best bet at present is that clinopyroxenes contain about 200 ppm but this is by inference only.

Cu in OIBs

Once again, very few investigations of oceanic islands include Cu. As only the second most important economic metal we have, it does not warrant much attention apparently if one can be permitted a little sarcasm.
Krafla, in Iceland, peaks at 200ppm at 7% MgO, declining both towards picrites and rhyolites. Our composite basalt-rhyolite dyke decreases linearly from 160 to <5 ppm, (Gunn & Watkins, 1969, Geoch.Cos.Act. 33), while the mountain of Kistufell which has glasses of over 10% MgO has 120 ppm max (Breddam,K., 2002). Torfajokull (MacDonald, et al, 1990) has a maximum of 150ppm but is so scattered that possible sulfides were forming. Selected high Mg basalts of Iceland do not exceed 120ppm at 8% MgO, (Elliott, et al, 1991)
No Cu data seem available for Puu Oo, Kilauea, Hawaii, (Garcia et al, 1999) but 1959 Kilauea Iki has a maximum of 135ppm (Gunn, 1971) and the Mauna Kea MKSD drill hole 125 ppm declining to 50 ppm in picrites, (Albarede et al,1996).
The Reunion picrites (Albarede, 1997 show a maximum of 120 at 7% MgO. St Helena as a low maximum of 90 at 10-11%, Tristan 95 at 12% and Gough as low as 50 at 7.5, (le Roex, 1985). The Cape Verde Is have 130 ppm at 8% MgO, (Gunn & Watkins, 1975) but the Sao Jorge alkali basalts in the Azores only 70 ppm at 10%, (Gunn & Fernandez, unpublished).
Heard Island has only 80 at approx 12% MgO but the Mangaia nephelinites, near Tahiti have 180 at 12% showing that the most alkaline rocks do not always have low Cu.
We can note that 1959 Kilauea Iki has one of the higher levels of Cu, the high rate of eruption possibly preventing settling of sulfide globules.

Cu in Back Arc, Island Arc, Continental andesites etc.

Niua Fo'ou west of Samoa has only 85ppm, Site 834 in the Lau basin 70 at 9% MgO while Pearce et al (1995) found 150 ppm also in the Lau basin. The Scotia Arc shows a great deal of scatter with a maximum of 180, the Tonga-Kermadec Arc being similar with up to 200 ppm at 5% MgO.
Valley of Mexico has only 40m at 8% MgO (Gunn & Mooser, 1970), but the potassic Parinacota in N. Chile has a maximum of 90. The ultra potassic Mt Vesuvius averages 110 - 140 @ 4% MgO.

Cu in Continental flood basalt

As might be expected in rocks that have parental magmas ranging from <50% to 56% SiO2, the Cu values vary widely being greatest in the more basic members. Thus the more basic Picture Gorge members of the Columbia River basalts have a range of 125 - 350 ppm (P.Hooper, 2002) and the similar Steens Mtn rocks 150-350ppm (Gunn & Watkins, 1971). However the more felsic Umatilla have only an average of 90 ppm.
The basic Pitanga rocks (Parana Basalts) have up to 250ppm, and the more felsic Paraparanema, up to 150. Vestfjaella in Antarctica have to 175 ppm, Coates Land sills and flows up to in excess of 250ppm (Brewer et al,1992) and the type Ferrar Dolerites sills up to 180 ppm, (Gunn,1966).
A few data are available for the Skaergaard Intrusion which indicate up to 250ppm. Cu in the Muskox Intrusion, (Francis, 1994) is obscured by mineralisation but the basic level appears to be about 250ppm. The high content of Cu in basic Flood basalts may explain the native copper found in the Coppermine dyke swarm and the Mackenzie lavas.
On average about 50% of Cu used is recycled from recovery of old electric wiring etc.

Iron and Steel

Fe, (At.No.26, Mol.Wt. 55.845) is not only the mainstay of civilisation and our most important metal, but is one of the more important elements in our understanding of geochemical evolution. Iron is only rarely found native as at Disko Id, Greenland, usually it occurs as hematite (Fe2O3) or as goethite (HFeO2) or limonite (Fe2(OH)3) or siderite (FeCO3). Pyrite (FeS) is mined more for the sulfur content rather than for iron. Current world consumption of steel for 2001 was 840 mt. It is forecast that by 2007 world consumption will exceed 1 billion tons. Current cost of steel coil is $400 US/t.

About 25% of steel is recycled. As about 70% of cars in USA are imported it is claimed that the local industry operates on 80% recycled steel, however the energy required per ton of steel remains about the same.

Alloyed with C, Ni, Cr, P, Cu, Mn, Mo, Al, etc, steel takes on an incredible range of properties of flexibility, toughness, stress resistance, shock resistance, corrosion resistance, but remains a fairly heavy construction medium hence the increasing use of Al, Al-Mg and Ti metals.

Historically iron began to be used in tools or for weapons only in the era 1500BC, the high temperature (900 - 1000º C) needed to reduce the oxide to metal requiring a blast furnace, or at least abundant charcoal and an efficient set of bellows. Regrettably most historians are not engineers or technicians and the historical record of iron mining in Europe is lamentably deficient in information on the ores used. Early Norse iron working was centered around bog iron ore, nodules of limonite found in poorly drained, highly reducing bogs. The historic Norse settlement at l'Anse au Meadows in northern Newfoundland is reported to have samples of worked bog iron.

Currently the vast deposits of Archaean sedimentary banded iron ore formation as seen in West Africa or at Mt Newman and Mt Tom Price in NW Australia are the greatest producers. At the latter the bulk ore runs at about 40% iron but secondary enrichment by goethite brings this up to better than 60%, the bulk of the ore being specularite, or adamantine hematite (called locally "microplaty hematite"). Weathering of Archaean greenstones in an atmosphere high in CO2 must have caused leaching by acid rain with a ph of 5 or less. (The transition FeCl3 - Fe(OH3) takes place near pH 4.5). On entering a sea of neutral pH, the iron would be precipitated as the hydroxide and under compression and metamorphism, revert to the oxide. This is an interesting topic and one we are seeking more information on. Ore horizons inches to feet in thickness in the Hammersley Range alternate with aluminous shale and chert. Al(OH)3 precipitates at a pH of about 5.2 and it is surprising at least to me, that pure aluminous horizons are not found. As the CO2 became absorbed into limestones and free oxygen appeared in the atmosphere, this process ceased and there are no known sedimentary iron ores formed after about 1 byr bp.
Elsewhere iron formation includes chert (taconite), siderite and pyrite as in Mesabi Range of Wisconson. Many other explanations of banded iron ore formation have been put forward.
Iron is about the fourth most common element known and occurs in all basaltic rocks in the range 3 - 18%. In chondritic meteorites iron averages at about 25 - 32% as a total of FeO + FeS + Fe(Met).

Fe - Mg replacement in Basalts

Mg and Fe have much the same ionic radius and charge along with other minor elements such as Mn, Ni, Zn, Co. They can therefore share the same sites in the crystal lattices of pyroxene such as diopside, augiite, hedenbergite, pigeonite, orthopyroxene and olivine. In all cases the order of preference is Ni > Co > Mg > Fe > Mn > Zn. Only Mg and Fe are present in large amount, always > ~3% in basaltic rocks. The first of any mineral series to form will have a high Mg, low Fe content so that the mineral may have, in the middle range, 30% more Mg and 30% less of Fe than the magma it is forming in. This results in rapid depletion of the magma of Mg (and even more of Ni) and build up in the amount of iron until the residual magma may become a ferro-basalt with 18% or more FeO. Not until the MgO reaches 3-4% and titanomagnetite precipitates causing a sudden drop in the amount of Fe, Ti and V does the composition of the crystal residue attain a lower silica content than the magma, and the silica content begins to rise.
All basaltic rocks show a range of Mg/Fe, there is always some crystallisation of olivine-pyroxene before the magma can freeze except in quite rare cases.

There is not a great deal to say about Fe in igneous rocks. The range can be 3 -18% in MORBs and about the same in Continental Flood basalts. Alkaline OIBs have 3 to perhaps 12-14 %, no ferro basalts are found in alkaline rocks. Iron is less again in arc andesites. There is no built up to a titanomagnetite point as few arc rocks are crystal fractionated, they are mainly partial melts of MORBs and iron decreases from basaltic andesite to rhyolite.


Ga has at times driven me to near despair. It seemed an obvious metal to determine by XRF only there was no gallium standard, so I bought some Ga metal to make artificial standards. Unfortunately it melts at about body heat, so these lumps of what appeared to be aluminum melted whenever touched and ran about like mercury. The obvious solution was to reduce it to some salt that did not melt to we put it in various strengths of HCL (to form GaCl3). It did not dissolve as Al would have done. When boiled it glowed like mercury and slowly diminished in size. After prolonged boiling it vanished. When the acid cooled it reappeared as an immiscible liquid globule quite unchanged. It seemed to be quite indestructible. I finally hurled it out a window and luckily some Ga values appeared for the standard W-1.
Ga is only found substituting for Al and does not form it's own minerals. The ratio Al/Ga is almost constant in alkaline rocks though not in tholeiites but levels remain mainly in the 15 - 40 ppm range and after many thousands of determinations I cannot pretend that Ga tells me much. It is amusing to read of metal-mining companies speaking of rocks with 100 ppm as an "ore" though I do not believe I have ever seen such a rock. Ga is mainly used as the arsenide, occasionally as the phosphide. The main source is as a by-product of Al smelting.

Uses of Ga

GaAs is used in LED's, photocells, laser diodes and IC's and in semiconductors in cell phones. It is anticipated that the use of Ga as a white LED may be billion-dollar industry within a decade. There seem to be no figures for world consumption but various reports mention 15 - 25 tonnes for USA with prices variously given as $425/Kg, $1000/Kg and $3,100/Kg. I smile at reports of Ga being an alternative to Hg in thermometers! Presumably in countries such as Saudi Arabia, daytime use only!!!! Possibly a way has been found of creating an alloy of lower melting point.

Ga in Oceanic (Simatic) Crust and OIB's

As for certain other elements, Ga has often been left out of analytical data sets, and there are no data for some key associations and islands.
While alumina decreases in amount with fractionation in tholeiites due to the early appearance of plagioclase, it increases throughout in alkali basalt-trachyte and basanite-phonolite series. Ga however, always shows an increase with fractionation in both tholeiites and alkaline series for reasons not immediately apparent.
The N-MORBs of the EPR show a range of 16-27ppm Ga, this being negative in slope to both MgO and alumina. Very depleted rocks, e.g., Site 504 of the Galapagos Rise have as little as 12 ppm. Sierra Negra in the Galapagos is slightly enriched relative to the EPR at the same MgO levels.
There is little Ga data for the Hawaiian Islands, there seeming to be none for either Puu Oo or the Mauna Kea Drill hole. Ga of course shows a positive correlation with any picrite series with undifferentiated end-members showing about 20 ppm for 1959-61 Kilauea (Gunn, 1971), with Mauna Loa about the same (Rhodes et al, 1995, Am.Geophys.Un.Mon.92). The Hamakua picrites - transitional basalts of Mauna Kea ~24, (Frey, Garcia et al, 1991, JGR 96) are slightly higher at 24ppm. The slopes of both the Ga/Mg and Al/Mg for Hamakua-Mauna Loa are different, probably due to a more Fe rich olivine in the Hamakua picrites.
There is little Ga data for Iceland, but the Austerhorn series of basalts to rhyolites have 20 - 32 ppm (Furman et al, 1992, J.Pet.33) and the Westmaneyjar alkaline islands lie on exactly the same trend with 18-26 ppm, there being no trachytes present. The Cape Verde Islands (Gunn & Watkins, 1975, BGSA 87) which range from ankaramite to phonolite show a regular trend from 12 - 30 ppm, Ascension sweeps up in commendites to almost reach 40ppm, (Kar, et al, 1988), Gough Id has from 15 - 36ppm, Heard from 16 - 24 and the basanites - nephelinites of Mangaia from 16 - 30 so there seems to be little difference between different rock series, as we concluded about 25 years ago.
There is no data for the nephelinitic Tubuai Is or other members of the Austral Is group..

Ga in Sialic Rocks

Island arc rocks show a lower Ga level but again slope upwards with fractionation. In the South Sandwich Islands of the Scotia Arc we see 12 - 18 ppm and exactly the same in Deception Id where a complex distribution curve is seen, mirrored exactly by Al2O3.
There are few data for continental andesites, but Puyehue in South Central Chile has a constant 18 ppm again mirroring the constant Al2O3 as does Planchon Petaroa with 18 - 20. There are no data for the North Chile-Peruvian more potassic andesites, and few from the European theatre. Trident in the Alaskan Arc again shows a relatively constant level at 20ppm, it being a mature arc type. The Valley of Mexico is also almost constant from basalts to dacites at 20ppm.

We have not yet seen Ga data for clays, zeolites, feldspathoids or other high Al minerals. We can conclude that while Ga often does follow Al closely, the curious way it always increases with fractionation in oceanic rocks while Al increases in alkaline rocks but decreases in tholeiitic ones needs explanation.


At.No. 32, Ge is again produced as a by-product of Zn ore processing and it is also found in coal. The unit price is $1150/Kgm. Ge is a semiconductor and Ge transistors invented by Shockley were the basis of the whole computer industry. By adding dopants of As, Ga, In, Sb and P; Ge could transmit both +ve and -ve currents (or not.)

The total consumption is now 110 metric tonnes, with 28,000 kgm being used in the USA according to USGS figures. It has of course been largely supplanted by silicon as a semiconductor.


Because of the lanthanide contraction Hf has almost identical ionic radius (71 cf 72A) and charge to Zr and never forms its own minerals. It has twice the specific gravity of zirconium and finds special use in atomic power plants. Zircons or baddleyites are usually found to have about 2% Hf. Older data (more than 5 years) often shows more scatter and a wider range of Zr/Hf ratios, sometimes as low as 32 and as high as 50. The newer data shows a concentration about 42 for most rocks. Some of the more reliable data appear to be:

EPR 37.5 Regelous et al, 1999.
Random MORB 37.1 David, et al, (2000, EPSL 78)
Reunion 38 Albarede, et al, (1997, J.Pet.38)
Iceland NVZ 40.4 Hemond et al, 2000.
Austurhorn, Iceland 40.7 Furman et al, (1992, J.Pet.33)
Kilauea Historical 39.5 Pietruska& Garcia, (1999, J.Pet.40)
Pu'u O'o, 1983-96 39.7 Garcia, (Pers comm.)
Mauna Loa 41 Rhodes et al, (1995, AGUM 92)
Albermarle, (Gal) 42 Geist, (1995); Kurz (1999).
EPR Seamounts 44.5 Niu & Batiza, (1997)
EPR Triple Junction 45 Lonsdale, (1992)
Mangaia 45 Woodhead, (1996, JVGR 72)
Pantellaria 42.5 Civetta, (1998, J.Pet.39)
Mt Sidley 42-46 Panter, et al, (1997, J.Pet.38)
Mt Waesche 45 do.
Macquarie Id. 40 Kamenetsky et al, (2000, J.Pet.41)
Gough 45 Weaver, et al, (1987) 3 only.
Puyehue 43 Gerlach & Frey, (1988)
Vesuvius 43 Belkin & Gunn, (unpub)
S-Sand Arc 42 Pearce et al, (1996).

It rather appears that the range of Zr/Hf is from about 37 in depleted MORBs, about 40 in OIB's to 42-45 in alkaline series. Sialic series seem to show a lesser range, the proto-arc andesites being above 40.
For many important islands there are either no data, or data which is both old and appears unreliable. We will add to the figures above as more become available.


At. No 49. In is a quite rare element obtained again as a by product of Zn-Pb smelting. About 4 mill. Troy Oz are produce a year at currently $120/oz of which Canada produces 1 million oz. It is used in transistors, rectifiers, photoconductors and LED's.


Li (atomic No 3) is the lightest solid element with a density half that of water. It has a high electropotential and is hence used in batteries.

The two main minerals in which it occurs are the lithium mica lepidolite, and as spodumene (LiAlSi2O6), a pyroxene found in pegmatites, but well brines are also a major source.

Annual world production is currently 189,300 tonnes of ore at $4,233/t.

LiCO3 is used as a flux in glass, ceramics and in alumina smelting potlines. We use it as a flux to reduce melting temperatures of rock powders for XRF analysis but it's use in batteries is rapidly expanding.
Lithium shows a small range with variation degree of partial melt in MORBs, from only 4 - 5.75 ppm being very similar under these conditions to Y, but it demonstrates a much larger range with fractionation, being in this respect again close to Y or Yb in geochemical behaviour, the ratio Y/Li being 5.3 for the EPR with a range of 5 - 23 ppm. Like Y, Li increases linearly with declining MgO in fractionated series in MORBs. When plotted against more lithophile elements, the trend is somewhat curved, the ratio being inconstant.

OIB sodic ankaramite-phonolites show an average range 5.4-45.4 ppm Li with potassic OIB the same.
In the andesite series, the more potassic member appear to be more Li enriched. Thus the Scotia Arc has 4 - 30 ppm, Mexico 5 - 30, the Andes 10 - 50 but the ultra-potassic Roman province 10 - 125 ppm. However, there are few data on most arc rocks and these figures are not precise.

Good Li data has only become available in recent years and is absent in most data sets.


Mn (At.No 25) is an element of many surprises. While totally insignificant of itself, it is the fourth most important metal in industry with a world production which has recently gone up to 25 mt, though there is some doubt as to whether pure metal or ore concentrate is referred to in metals reports. A total value of $2.3 billion US, suggests an average price of $93/t.

The greater part of this goes to alloy steels and aluminium, manganese steel being harder, more wear resistant and tougher than mild steel. It is also mentioned in connection with stainless steels but while personally I am familiar with many variants of stainless from type 18-8, type 304, type 302 etc I do not recall a Mn stainless.

South Africa has reserves of 12 billion tons, mainly in the Kalahari desert, this being 80% of the world's total estimated reserves. China, the world's greatest steel producer, mines nearly 2 mt annually, some of which is exported while the US imports over half a mt.

About 1% of Mn goes into animal feed stock where it forms an essential component.

Rhodonite MnSiO3 is an important gangue mineral at Broken Hill and is associated with the Mn olivine and the manganese pyroxene bustamite (CaMnSi2O6). However these are not currently economic to use as ore, in fact some years ago NBH were running the rhodonite back down underground as fill! Anyone want to bet that before too many years are up they will be digging it out againa?? In the oxidation zone Mn occurs as coronadite a hydrated mineral of Pb & Mn. Pyrolusite, MnO2, is found under highly oxidising conditions in bogs or as a secondary product deposited by circulating meteororic waters in Mn-bearing rocks, eg, old volcanic basaltic pyroclastics. Any such rocks stained black or brown with a bluish or purple sheen can be assumed to have a manganese coating.

Manganese in Volcanic Rocks

In basalts, MnO2 occurs monotonously near 0.18%, varying slightly with amount of iron. It peaks at about 0.3% in ferrobasalts and like Fe and Ti declines rapidly towards rhyolites or trachytes. MORBs have a ratio FeOT/MnO of about 55 and this does not vary greatly. However, in the Macquarie partial melt series MnO increase more rapidly than FeO with decreasing degree of melt, from 0.07 - 0.17% so that MnO should be high in fractionated EMORB. In andesite series a range of 0.4 to 0.2% MnO is typical.

In rare instances, Mn can be useful geochemically, eg the Surtsey - Eldfell series can be separated easily on their Mg0/MnO distribution, better than by comparing their MgO/FeO.


Mg (At. #12) is usually about the 4th most abundant element in basic silicate rocks after O, Si, Al, and sometimes also after Ca and Fe. It is the most important element in classifying igneous rocks geochemically. An MgO level >30% indicates an ultrabasic or peridotitic rock, 12 - 24% a picrite or ankaramite, 6 - 10% a basalt, 3-4% an andesite or mugearite, <1% A trachyte, phonolite or rhyolite. That is, it is affected very strongly by fractionation of igneous rock, being, after Cr, the first element to form a silicate mineral on cooling of a magma. This mineral is usually olivine but may be orthopyroxene in a magma of over 52% silica, followed quickly by clinopyroxene, (plagioclase) and pigeonite.

In tholeiitic rocks of the oceanic type, the three minerals olivine, clinopyroxene and plagioclase usually appear together at a cotectic point. Whatever the case, the result is a quick depletion in the amount of magnesium along with Ni, Cr and Co. The site in the common ferromagnesian minerals is increasing taken up by ferrous iron as magmatic temperature declines.


Though MgO may constitute up to 50% of the mineral olivine and also in ultrabasic rocks which are virtually monomineralic olivine (such as in dunites), separation of metallic MgO from such a high temperature refractory mineral is expensive. Ores are usually serpentenites, and the various halides, carbonates, or nitrates found in salinas, well brines or even seawater. Dolomite,((Ca,Mg),CO3) magnesite, (MgCO3) and brucite, (Mg(OH)2 are also used as a source of magnesium metal. The reserves of magnesium are almost unlimited.


Powdered Mg metal ignites at a low temperature and was used extensively as a flare in wartime as it burns with a very intense white flame. A century ago it was used for night photography. It is now used as a lightweight alloy with Al especially in aircraft manufacture and car cylinder blocks and other components.


Estimates vary widely, an annual production, well below consumption, of 83,000 tons in USA is given by the US Commodities group. Another source gives worldwide production of 730,000 tons with a bulk price of $1.35/lb or $2000/ton. One estimate of the cost of production is $0.60/lb.

MgO in Oceanic Basalts

Ultrabasic rocks and picrites are quite rare in the oceanic environment, though peridotites do occur as apparent up-faulted slices of mantle, e.g. in St Paul's rocks in the mid-Atlantic and on the walls of some mid-oceanic scarps. 90% of all MORB glasses analysed lie between 6 and 10% MgO with the quite rare associated ferrobasalt-icelandite-dacite-rhyolite rocks decreasing to 1% MgO or less. The average for all MORB rocks is 7.5%. (Note that the latest summary of Melson et al, (2002, G-Cubed) gives a mean of 7.29% MgO for 9050 MORB glasses, no glass sample having in excess of 10%). In Archaean MORB formations however, picrites and rocks with 25 - 35% MgO termed komatiites, appear more common than in their recent equivalents.

Ankaramites (an approx. equal mixture of olivine and clinopyroxene) are found in almost all alkali basalt-basanite oceanic islands and sea mounts and may have up to 18% MgO. While a great effort has been made to restrict the analysis of MORBs to non-crystalline glasses, unfortunately no such effort has been made for the alkaline rocks. We therefore have no knowledge what the most magnesian alkali basalt or basanite might be. We therefore do not know where the plane of partial melts lie for alkaline rocks. It seems to be more magnesian than as seen in tholeiites, possibly as high as 12-14%.

MgO in Sialic Andesites

Proto-arc rocks may have the same MgO content as MORBs, i.e. up to 10%, but in mature-arc or Andean basalt it is rare to fine a non-cumulate rocks with more than 7%, the average basaltic andesite-andesite series averaged 3-5% and in rhyolitic or ignimbritic terrains it is of course usually < 1%. The most basic, depleted rocks known are the so-called "Back-Arc Basin basalts" e.g. of the Lau Basin, (Pearce,J., 1995) but these again do not have more than 10% MgO.

MgO in Continental Flood Basalts

These vary widely from the picritic rocks of the Letaba Fm in the Karoo, or similar rocks in the Etendeka and the Skaergaard intrusion, where chilled rocks have at least 10%. More commonly the flood "basalts" are LILE enriched and lie between basalt and andesite (50-57% silica) and the magnesium is correspondingly low, usually 3 - 6%.


The metal Ni and to a lesser extent, Co, Zn and Mn all substitute for Mg or Fe in olivine, one of the very first minerals to form in most basalts. Cr also shows much the same behaviour. Under surface conditions Ni preferentially enters olivine to the degree that, (taking an example from the 1959-60 Kilauea Iki picritic eruption, (Gunn, 1971, Chem.Geol. 8, 1-13)), in a melt with about 225 ppm Ni and 7.5% MgO an olivine of Fo85 - Fo88 may have 2500 - 3000 ppm olivine. In other words the partition coefficient is high, perhaps about 13 compared to about 7.5 for MgO. That is, thirteen times as much Ni goes into the olivine as remains in the basalt liquid. A table for partition coefficients for these metals is being prepared.
Olivine depletes the nickel in a rock so rapidly that below about 3% MgO there may only be 10-20 ppm remaining. The only reason this is not sopped up as well is because olivine has ceased forming and some Ni goes into Ti.magnetite.
In spite of a great deal of data on Ni, the amount of good data concerning the amount of Ni in various grades of olivine is limited to absent except at a low level of accuracy, but laser-ablation techniques should change this.

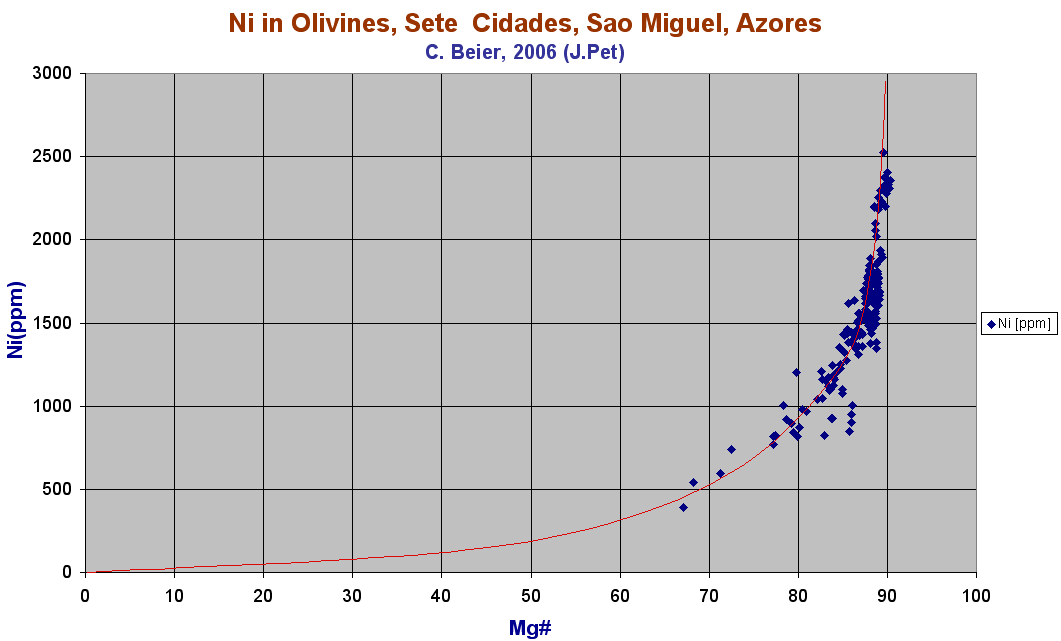

Mg vs Ni in Olivine, Sete Cidades, Sao Miguel, in the Azores.

Origins and Production of Ni

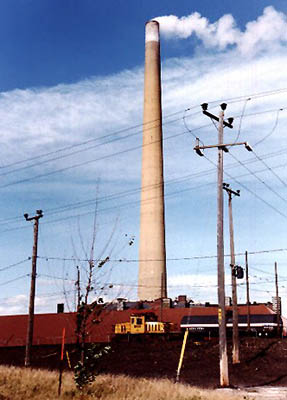

At 1,250ft (380m) the Inco chimney in Sudbury,
Ontario is one of the tallest in the world. Its height
means that pollution is no longer a local problem.

By far the greater part of the Ni in the Earth's crust occurs in the magnesian silicate olivine where it replaces Mg to the extent of 2000 - 4000 ppm. While this only a few tenths of a percent, olivine is a very common mineral in basic rocks. The Ni content is much higher in the more magnesian olivines, ranging from about 3500 ppm at Fo90 down to about 1500 ppm at Fo65. Renner et al (1993,J.Pet.35,361-400) show a much steeper distribution of Ni in olivines of Archaean Komatiites but it is impossible to reconcile their diagram with their data, and we must await new laser ablation ICPMS data.
Laterites developed by tropical weathering on the surface of old alpine-type peridotites have retained Ni, often in the mineral garnierite as in New Caledonia, in east Australia and I believe, in the new Murrin Murrin field in WA. Exact figures are not available but laterite sources accounts for only about 15 - 20 % of total nickel production.
By far the greater amount is recovered from disseminated sulfides in massive basic intrusions, where is occurs as pentlandite, (Ni,Fe)9,S8), or as niccolite (NiAs) or millerite (NiS). By far the best known occurrence is at the Sudbury Intrusion in Ontario Canada, headquarters of the well-known conglomerate INCO. In 1995 INCO is said to have produced 143,000 tons Ni, 116,000 t Cu, as well as PGE (Platinum group elements.). Another large Sudbury mine, Falconbridge, produced 34,000 tons Ni, 42,700 t Cu and 540 t Co. For these figures we are indebted to Laurentian University members. The Thompson Mine in northern Mantitoba is supposed to have produced even more, and the large Muskox Intrusion near Coppermine, NT is being developed by INCO.
(see further detail on Sudbury under "Continental Flood basalts")
About 1 million tons of primary Ni is produce annually world wide, compared to 10 million tons of Cu and 800 million tons of steel.
Australia currently exports 228,000 tons of Ni pa, mainly from the Norseman-Kambalda area south of Kalgoorlie. The new Murrin Murrin refinery will soon produce 45,000 tons pa from this region. The mines at Norseman recover Ni again mainly from pentlandite in Archaean high-Mg komatiites, but whether from flows or massive intrusions, is not known to me at this point. It appears to be believed that the pentlandite is secondary consequent on greenschist metamorphism.
Another large developing field for Ni is in the Siberian Traps on the NW edge of the Norils'k-Tunguska basalt-gabbro complex. Reserves are estimated at 1870 Mt of 0.7% Ni. The region is also a major producer of Pd and Pt (4 Mill.oz Pd, 1 Mill.oz pa in recent years.

Uses of Ni

Nickel is mainly used in stainless alloys for household and hospital utensils, an alloy nickel aluminide is six times as strong as the stainless alloy type 601 (or 18-8), and can withstand temperatures of 1000deg C and is used in gas turbine blades. A Cu-Ni alloy, monel, withstands both seawater and diesel oil corrosion and has wide marine use. Monel is also used in coins. Type 18-8 (18% Cr, 8% Ni) stainless steel is universally used in yacht and other marine fittings
Current bulk Ni prices are $4,400 - $4,500 per ton.

Ni in MORBs & EMORBs

EPR MORB glasses have a maximum of about 80 ppm which give an approximation for the most primitive melts, there being no data for Kolbeinsey Ridge, apparently poor data for Site 504 and no Ni data for the Smithsonian Deep Sea glasses. The SEIR mainly cluster at 80 - 100 ppm but with a few up to 200ppm but we are not positive these are all glasses. The picrites of the south Atlantic studied by Van Heerden and le Roex are associated with basalts of 80 ppm, as are the picrites of Leg 37 in the north Atlantic, Gunn & Roobol, 1972). Macquarie Parental melts show limits of 80 - 160 ppm which explains why basaltic glasses to not show < 80.
Somewhat similar EMORBs from Mohns Ridge and the SW Indian Ocean Ridge show a straight line with a maximum at 9.5% MgO and 200ppm Ni, but as the apparent primary trend and fracionation trend are very close to each-other, one cannot be sure.

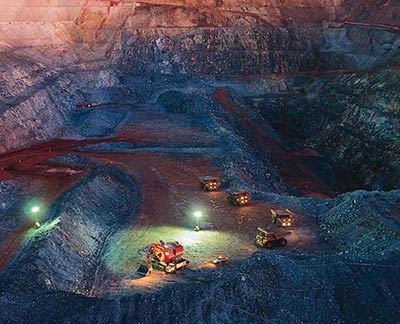

Open cast mining for nickel at Mt Keith, N. of Kalgoorlie in the Agnew-Wiluna greenstone belt or Yilgarn Craton, 2.7+ byr Archaean highly magnesian komatiite type MORB flows, now very sheared and distorted greenschist rocks. Pentlandite has formed after breakdown of Ni-bearing olivine to chlorite - tremolite etc. and been adsorbed into pre-existing Fe (Ni-poor) sulfide, (Barnes,S & Hill, 2000, Econ. Geol.Boulder; 203-217) Mt Keith is owned by W.M.C. Western Mining, who also have mines at Leinster and Kambalda in the Agnew-Wiluna belt, a smelter south of Kalgoorlie and a refinery south of Perth. Approx. 107,300 tons Ni was produced in total in 2000.

Ni in OIB and MORB picrites

Picrites, or olivine-bearing rocks of more than 12% MgO are none so rife hereabouts. Many rocks termed picrite prove to have some cumulative olivine mixed with clinopyroxene and very erratic compositions. True picrites are found in Hawaii, Reunion Island, at one outcrop on the Galapagos Islands at Cerro Redonda, and rarely in mid-ocean ridges but we had some in Site 332B on Leg-37 and Van Heerden and le Roex reported picrites from the South Atlantic (1988, CMPet.100).
Using my 1971 Kilauea Iki data as a base, we find that the Mg/Ni distribution trends towards a Fo85 olivine with 3000ppm. Mauna Kea (Yang et al,1996,J.G.R) lies on exactly the same trend, Mauna Loa appears to be slightly more Ni enriched. As Mauna Loa is in general less enriched in LILE this might be expected. The Hamuka lavas of Mauna Kea (Frey & Garcia, et al, 1991, JGR 96) which are rather transitional have slightly less. Very few picrites extend beyond 24% MgO and 1100 ppm Ni.
Pu'u O'o has no picrites but the trend of successively larger degree melts forms a primary trend extending from about 100 - 180 ppm with the early 1983 higher fractionates distinctly offset. There seems to be a shift with time towards a higher Mg but relatively lower Ni magma, see data shown by Garcia et al 2000,(J.Pet.41). As we know so little of the Mg/Ni relationships in the mantle, it cannot be said whether this is to be expected with higher degree of melt or not.
However, Hawaii in general is so different from MORB rocks there is no reason to expect any similarity but the South Atlantic picrites of Van Heerden & le Roex (1988, CMP 100) have a very similar trend, perhaps slightly higher in Ni again, like Mauna Loa. The only way this coherence can be explained is to assume than the Mg/Ni fractionation trends lie very close to the primary melt trends as they seem to.
Piton de Fournaise in Reunion (Albarede, 1977, J.Pet. 38, 100-180) is again very similar, with perhaps slightly less Ni relative to MgO. These small differences only require a shift in the dominant olivine forming to be Fo84, Fo85, Fo 86. Cerro Redonda in the Galapagos (Standish, al, 1998, C.Min.Pet 133) has slightly less Ni than Piton de la Fournaise.
The similarities in Mg/Ni over such distances and different tectonic environments suggests a very homgenous mantle indeed for these elements.

|__| MgO/Ni for picrite cumulates.

Ni in Alkaline OIBs

Much to my own surprise, (as I have never really looked at then seriously) the Mg/Ni of some alkaline series cumulates are not greatly different to the tholeiitic rocks in spite of the fact that their cumulates are not pure olivine but about equal amounts of olivine + Cpx, which latter takes in much more Ni. So one would expect about half the Ni in alkaline rocks and about 2/3 the MgO as found in tholeiites.
Tristan da Cunha has slightly less Ni than St Helena (which is about the same as Mauna Loa) and Gough Id slightly more. Of course Cpx has less MgO than olivine, about half as much, but this does not seem enough to compensate for the Ni which should only be about 60% for combined Ol + Cpx. Certainly our ankaramites of the Crozet Islands and the Cape Verde Is as well as Sven Maaloes from Jan Mayen has the expected diminution in Ni so why not St Helena? Are the alkali basalt olivines of St Helena more magnesian? More Ni enriched? I do not think we know yet. Gough does in fact trend towards olivine, not ankaramite. Another mystery!
Trends in most alkali basalts are never so invariant as in the picrites because of slight mechanical variations in olivine-clinopyroxene ratio.

|__| MgO/Ni for alkali basalt (ankaramite) cumulates

Ni in Andesite Series

The general impression that Ni is very low in andesite series is mainly the result of the scarcity of rocks of 7% or more MgO in andesite series. Most andesites lie in the sub-4% MgO range where the Ni of any rock is low. However it is a pleasure to note than the Morne Caraiibes basalts on Guadaloupe in the Lesser Antilles ARE low in Ni, about 15 ppm at 6% MgO, as we once reported them. The MgO/Ni curve is flatter than for alkali basalts or so it seems from the very few examples we have of high Mg orogenic basalts. Even rocks reported as basalts, eg Hickey, Frey et al, (1986, JGR B91) in south Central Chile, average 6% MgO and 50ppm Ni.
All we can say is don't buy shares in a nickel mine in andesite rocks.
Ni is also low even in differentiated sills in Continental Flood basalts. With accumulated orthopyroxene, the Ferrar sills show only 300 ppm at 25% MgO and in spite of "the Olivine Ledge", the Palisades Sill near New York has only 500 ppm at 20% MgO. The Palisades have a very iron-rich olivine, (M. Gorring, pers comm.)


Nb is of great interest to the geochemist because of its sensitive response both to the degree of melt in MORB - EMORB and to the alkalinity of a series, and to the fact of its extreme depletion seen in both orogenic rocks and in Continental Flood Basalts. Y, Zr and Nb, (elements 39, 40, 41) almost always show good correlations as do Y/Lu, Zr/Hf and Nb/Ta.

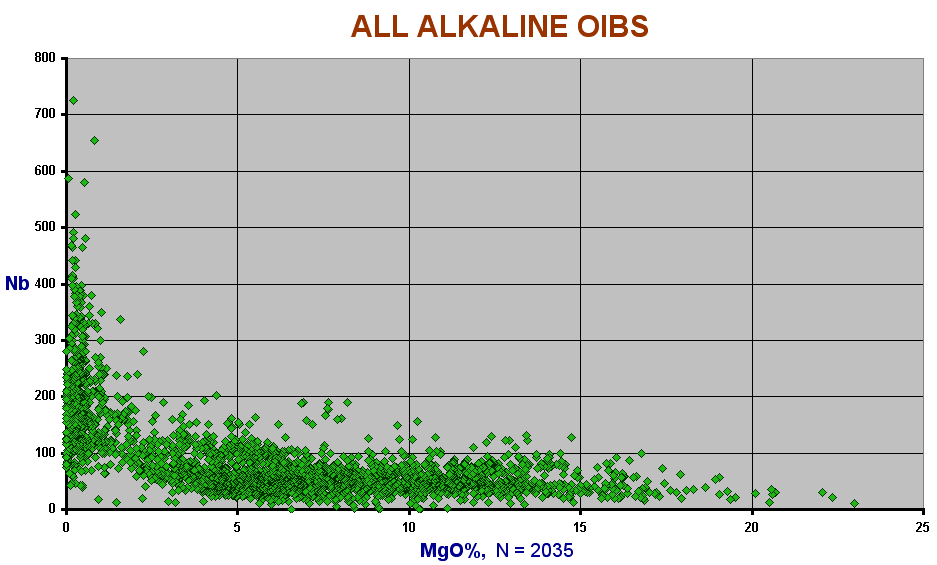

The distribution of Nb against MgO for all alkaline oceanic island basalts. Alkali basalts at 5-6% MgO, ankaramites to right, trachytes, commendites, phonolites and pantellerites to left.

Nb-Ta occur in the minerals columbite and tantalite which are Fe, Mn niobates and tantalates and tend occur with cassiterite and be recovered from tin slags. An alluvial concentrate called "Contan" is recovered in the Congo. However at present , 95% of ferroniobium is obtained from pyrochlore in carbonatites. Nb occurs in common silicate rocks in the range 1-400 ppm and the Nb/Ta ratio is in the range 15-18. Ta is twice as heavy as niobium and is very resistant to corrosion. Both are used in capacitors, superconductors, super alloys, jet engines, and as anticorrosive coating in chemical plants.
Total world production is now 23,600 tons and the cost in bulk only $18 per lb.

Nb-Ta in MORBs and OIBs

Nb is extremely low in NMORBS, being commonly in the range 0.1 to 5ppm, (Niu & Batista, 1997). In the EPR series (Regelous et al, 1999) the range is 4-17.6 ppm in basalts-MORB dacites. In the most enriched, low melt fraction, unfractionated EMORBS, Nb can reach over 100ppm, (Kamenetsky, et al, 2000, J.Pet. 41, (3) 411-450).
The fractionation trends resemble neither the log-normal distribution of Zr nor the linear trend of Y. Plotted against MgO, a series of concave curves are seen with increasing alkalinity, the most tholeiitic rocks have a linear trend and the most alkaline quite well curved. At 4% MgO, we see a Nb level of 10 in the EPR, in Alcedo (Gal) and in the NVZ of Iceland, 35, and perhaps slightly more in the Westmanneyjar Is. St Helena has about 75, Tristan 90 and Gough 110 with a maximum of 400 ppm in trachytes.
Once again Pantellaria tops the list with 430 ppm, the Naivasha commendite being lower with 370 ppm max.
However much of the Nb data is now quite old. As seen in the chapters on MORBs and OIBs, the Zr/Nb ratio declines from about 34 for the EPR to 3 in very alkaline nephelinites such as in the Tubuai Is, (Caroff et al, 1997). Unfortunately there is little good data on carbonatites, though probably a good deal in journals of Economic Geology. The Ecole Polytechnique at Un. de Montreal for example for many years had projects on the Oka Carbonatite and new Ce, Nb minerals were found.
The very high Nb, low Zr/Nb found in the most enriched primary EMORB melts (Kamenetsky, et al, 2000) of Maquarie Id of under 2 has not yet been found elsewhere suggesting that either such small degree melts are not common, or that while they are known to exist in the Smithsonian collection of glasses, they are still waiting to be analysed.

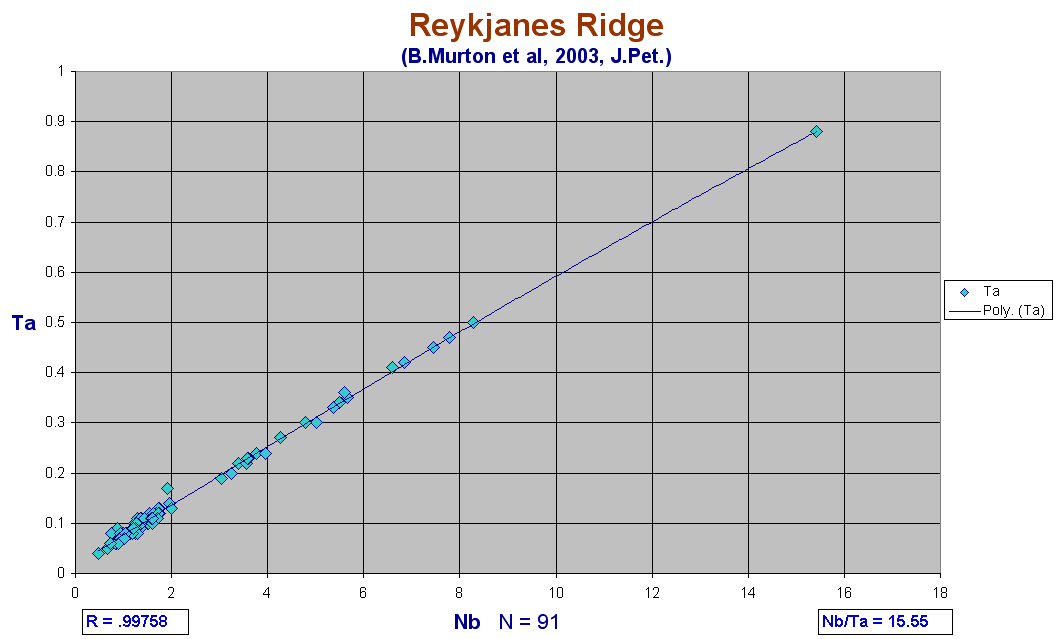

Nb/Ta for Rekjanes Ridge. The more enriched EMORBs show little difference.

Nb-Ta in Sialic rocks

These are universally anomalously low in abundance in andesitic rocks, nor do they vary much with andesite type. Puyehue and associated centres in south-central Chile have 6 ppm at 60% silica, and the depleted Candlemas Island in the South-Sandwich group about the same. Deception, (as with Zr) is again high at 11 ppm whereas Sangay from Colombia has only 8. Nb is relatively low in the potassic Mt Vesuvius at 20-30 ppm but the Campanian Ignimbrite sweeps up steeply to 120 (Civetta et al, 1997)
CFBs are also anomalously low in Nb-Ta, the Ferrar and Tasmanian Dolerites having only 4-5 ppm Nb at 6% MgO. In the Columbia River Basalts, Roza and Grande Ronde average 18 and 14 while Umatilla rises to 32. In general, CFB's have only slightly more Nb-Ta than MORBs.

Ratio Nb/Ta

Along with Zr/Hf, the ratio Nb/Ta has long been known to be almost invariant. Like Zr/Hf however it shows a slight change as rocks progress in composition from tholeiitic to alkaline:

Volcanic region/Island Nb/Ta
EPR 15.0
SEIR 15.0
Austerhorn, (Ice) 15.7
Alcedo 16.4?
Loihi, (Hawaii) 16.6
Ascension 16.7
Westmanneyjar 17.0
St Helena 17.1
Macquarie 17.5
Mangaia 17.8
Mt Ross 17.9

The figure for the Macquarie partial-melt series may be dominated by the high Nb-Ta members as the depleted members should not differ from the EPR.
References may be found in the Zr/Hf table and elsewhere. The alkali basalts-trachytes of Mt Ross are about the same as the highly sodic basanites of Mangaia. There is no data for Tristan, Gough or other important islands, but we can assume the small change in ratio with alkalinity is real as the correlation coefficients in each series are all between 0.97 and 1.0. Older, inconstant and suspect data may range from 13-20.


Copyright © Dr B.M.Gunn 1998-2006
